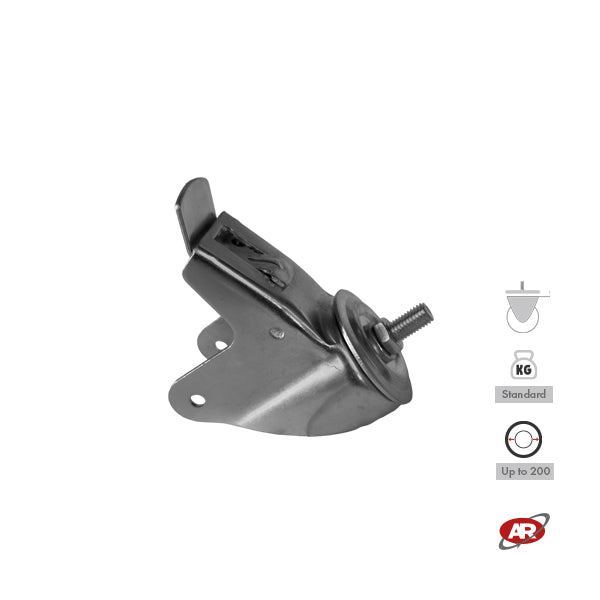

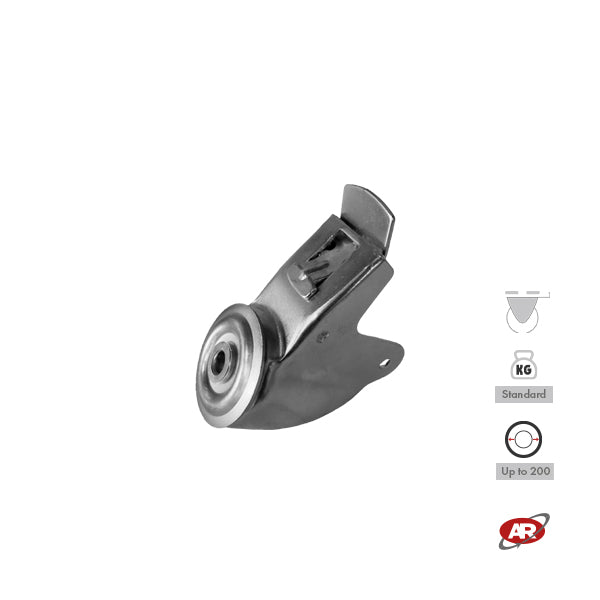

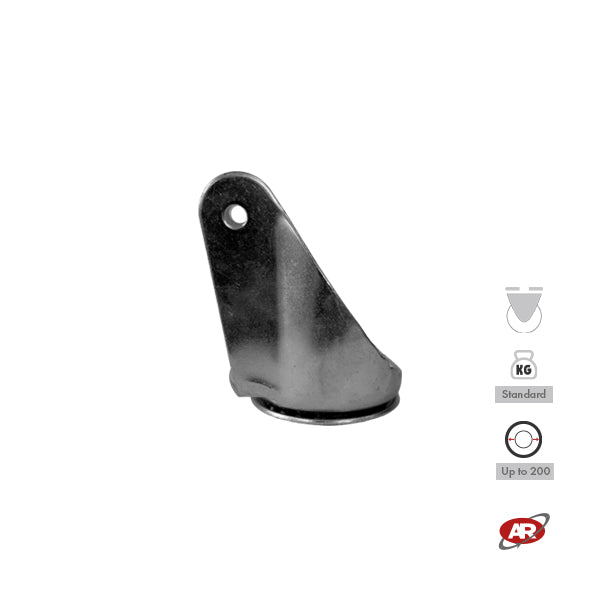

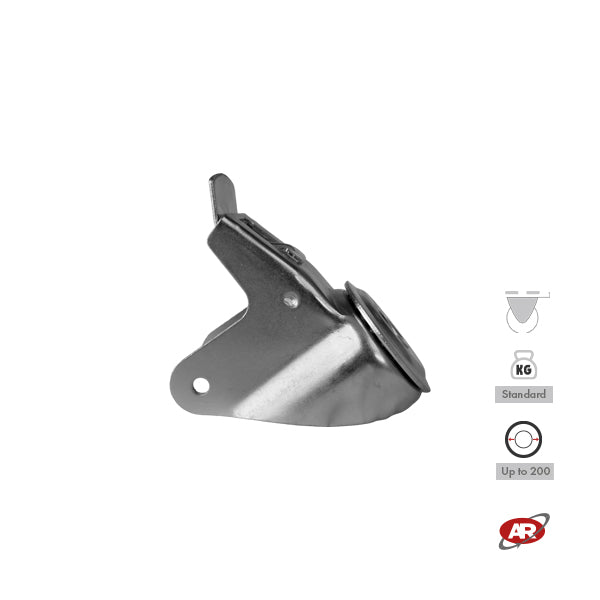

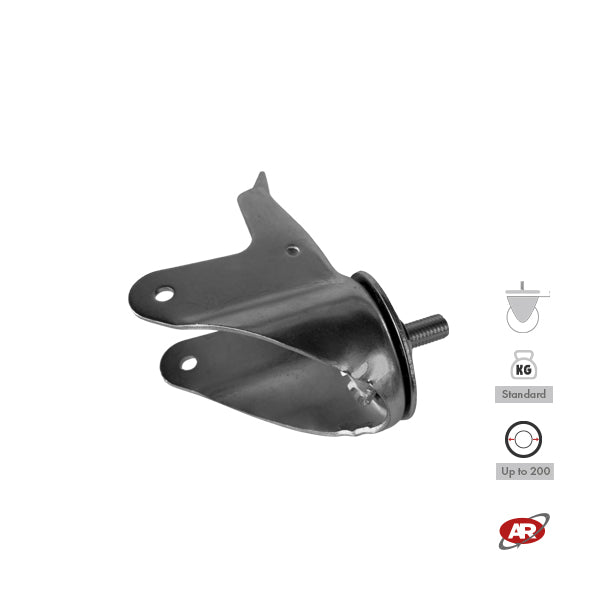

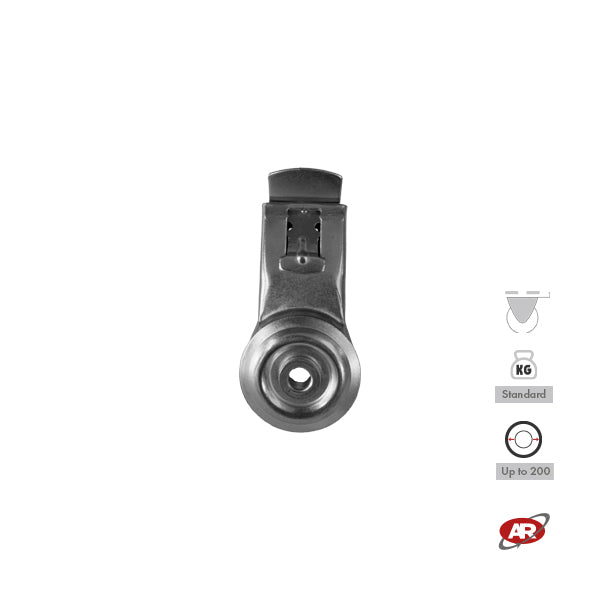

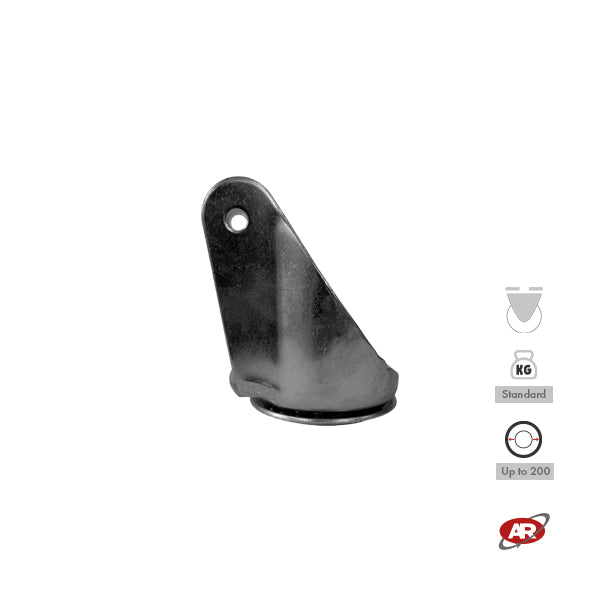

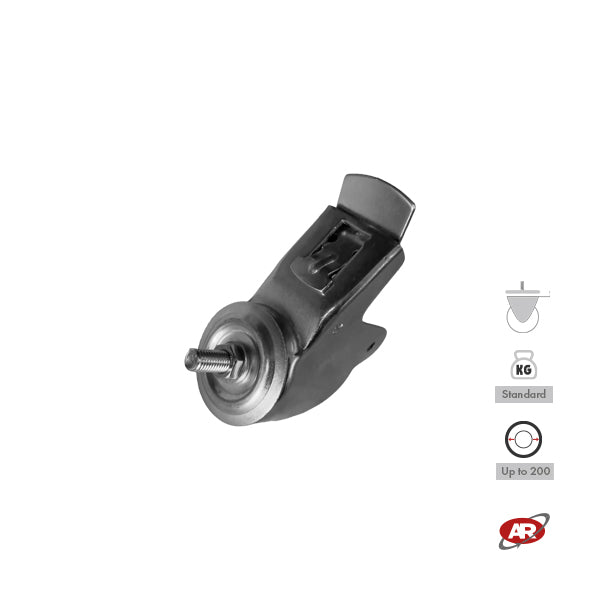

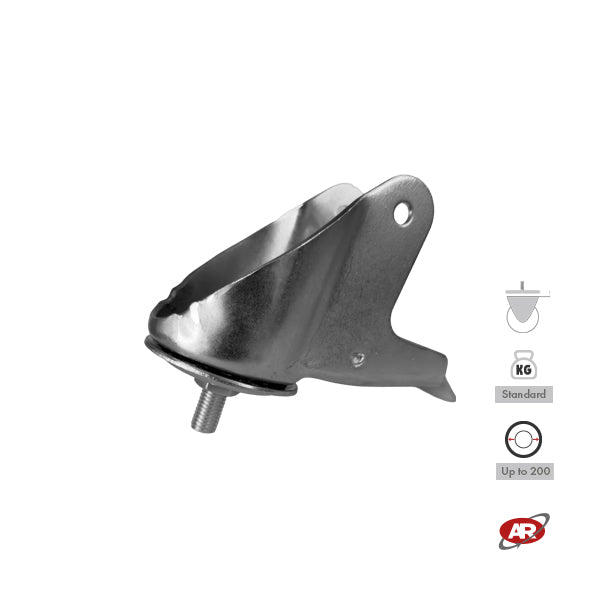

STAINLESS STEEL plate supports | ROTATING and swivel with BRAKE | Industrial applications | Load capacity up to 350 kg | For wheels up to Ø 200

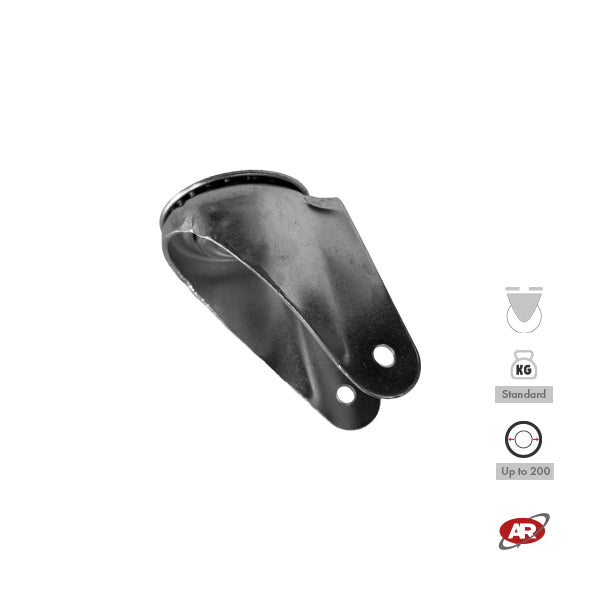

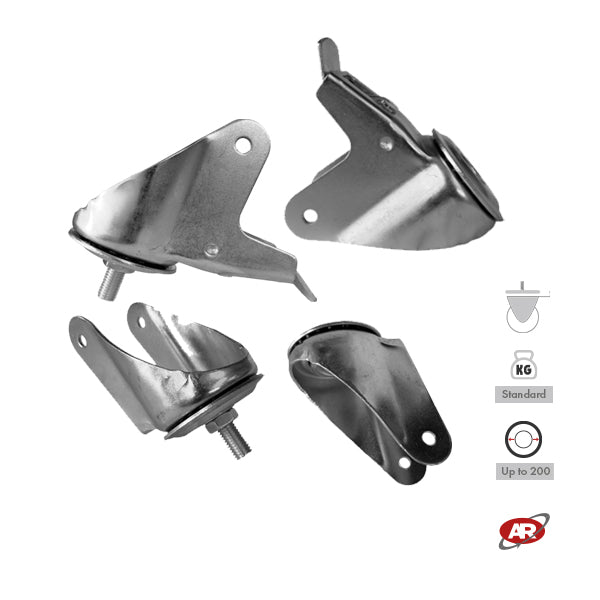

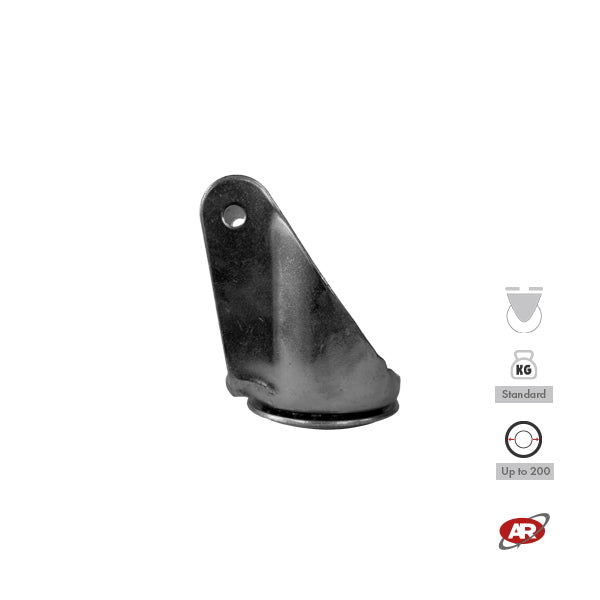

AISI 304 stainless steel plate castors, swivel and swivel with brake, for wheels Ø 80–200 mm and load capacities up to 350 kg. Ideal for humid or heavily washed environments: excellent resistance to corrosion, chemicals, and abrasion; recommended use between −5°C and +50°C. Pin fixings: through hole, smooth pin, or threaded pin (M12/M16).

Tags:

abrasion resistant, abriebfest, Acciaio inox aisi 304, AISI 304, AISI 304 caster bracket, AISI 304 giratoria, AISI 304 Lenkrolle, AISI 304 pivotante, AISI 304 Rollenhalter, AISI 304 swivel caster, anti-abrasion, antiabrasión, apta para lavado, baja velocidad 4 km/h, basse vitesse 4 km/h, braked swivel top plate, capacité 350 kg, carga 350 kg, carga hasta 350 kg, carros de manutención, carros industriales, chape inox AISI 304, chariots de manutention, chemical resistant, chemikalienbeständig, cleanroom, corrosion resistant, design hygiénique, diseño higiénico, Durchgangsbohrung, Edelstahl Gabel medium duty, Edelstahl Plattenrolle, entornos húmedos, espiga roscada M12/M16, farmacéutica, feuchte Bereiche, fixation à platine, food grade, fourche inox medium duty, gebremste Lenkrolle Topplatte, Gewindezapfen M12/M16, giratoria, giratoria con freno, giratoria con freno de platina, grado alimentario, HACCP Edelstahlrolle, HACCP stainless caster, Handwagen, horquilla inoxidable medium duty, hygienic design, hygienisches Design, industrial caster wheels Ø80–200 mm, Industrieräder Ø80–200 mm, korrosionsbeständig, Lagerwagen Räder, lavable, lavage, lebensmittelecht, Lenkrolle, Lenkrolle mit Bremse, load up to 350 kg, low speed 4 km/h, manual handling trolleys, marine use, maritimer Einsatz, milieux humides, montaje en placa, niedrige Geschwindigkeit 4 km/h, NSF compliant caster, NSF konforme Rolle, Nuovi arrivi, Nuovo arrivo, OEM grossiste UE, OEM Großhandel EU, OEM mayorista UE, OEM wholesale EU, orificio pasante, Pharma, pharmaceutical, pharmaceutique, pivotante, pivotante avec frein, pivotante freinée platine, plate mount, Plattenbefestigung, Polyurethan/Nylon/Gummi Rad, polyurethane/nylon/rubber wheel, qualité alimentaire, Reinraum, resistente a la corrosión, resistente a químicos, roue polyuréthane/nylon/caoutchouc, roues industrielles Ø80–200 mm, roues pour chariot d’entrepôt, roues Ø80–200 mm, roulette conforme NSF, roulette hygiénique, roulette inox HACCP, roulette à platine inox, rueda compatible NSF, rueda con placa inoxidable, rueda higiénica, rueda inox HACCP, rueda poliuretano/nylon/goma, ruedas industriales Ø80–200 mm, ruedas para carros de almacén, ruedas Ø80–200 mm, Räder Ø80–200 mm, résistante aux agents chimiques, résistante à la corrosion, sala limpia, salle blanche, sanitary equipment caster, Sanitärtechnik Rolle, soporte AISI 304, stainless steel plate caster, stainless yoke heavy medium duty, Supporti in acciaio Inox, Supporti per ruote industriali, supporti ruota inox AISI 304, swivel, swivel caster with brake, swivel with brake, threaded stem M12/M16, through-bolt mount, tige filetée M12/M16, Tragfähigkeit 350 kg, trou traversant, usage marin, uso marino, warehouse cart wheels, waschbar, wash-down safe, washdown safe, wasserfest/waschbar, wet environments, wheels Ø80–200 mm, −5/+50 °C

abrasion resistant, abriebfest, Acciaio inox aisi 304, AISI 304, AISI 304 caster bracket, AISI 304 giratoria, AISI 304 Lenkrolle, AISI 304 pivotante, AISI 304 Rollenhalter, AISI 304 swivel caster

By

AR.Trade s.r.l.

SKU:

2H080-12I

Reference wheel: Ø 80 mm

Ø 80 mm

Ø 100 mm

Ø 125 mm

Ø 160 mm

Ø 200 mm

Choose the support: Bolt hole swivel castor

Bolt hole swivel castor Bolt hole swivel castor

Bolt hole swivel castor with total brake Bolt hole swivel castor with total brake

Threaded pin: No

No

Yes

Quantity

Industrial components

people are seeing this right now

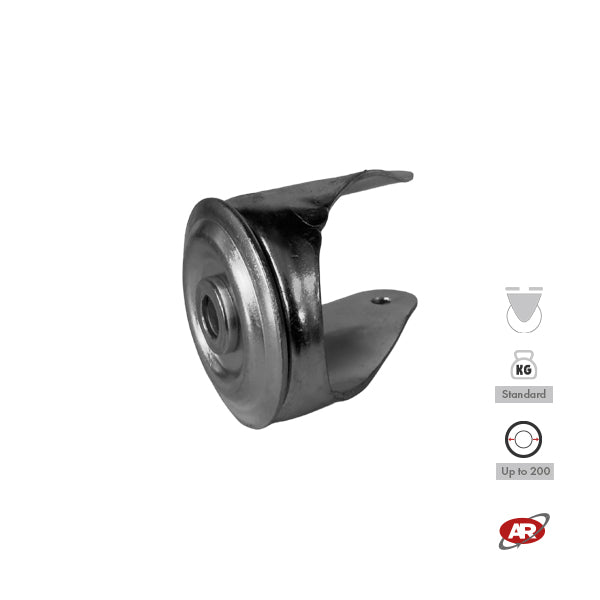

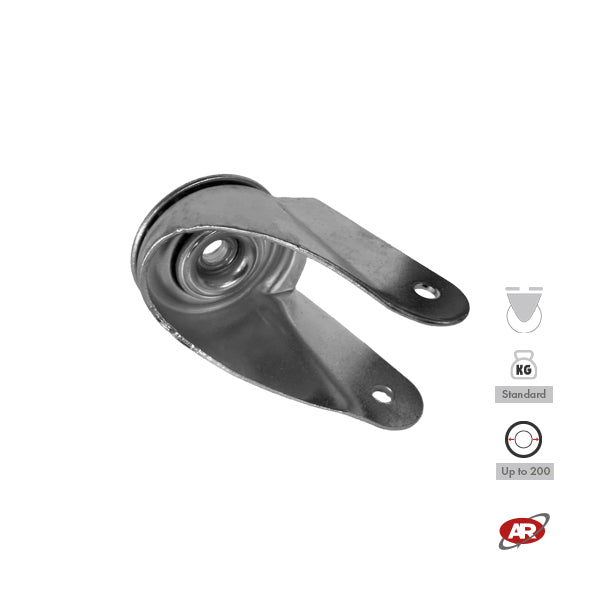

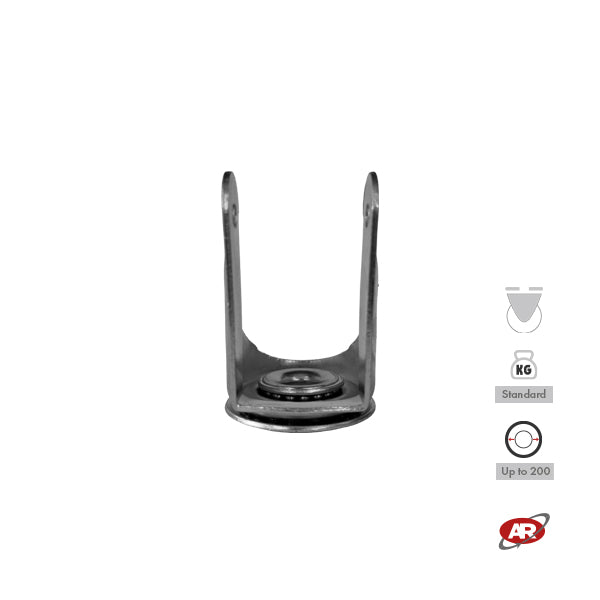

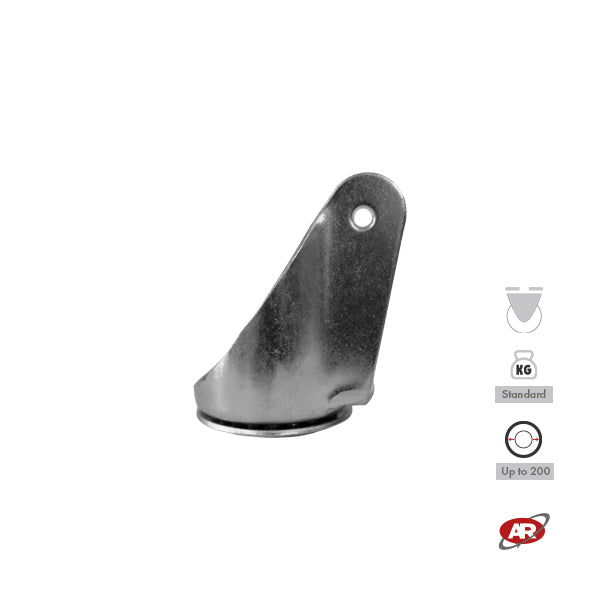

Rotating and rotating supports with BRAKE in stainless steel ( AISI 304 ) , for MEDIUM industrial loads . They offer good resistance to chemicals and abrasion. Range of use: −5/+50 °C. Ideal for manually handled trolleys.

The support connects the wheel to the trolley, machinery or equipment . In manual handling, the wheels are not drive wheels: they are designed to be pushed or pulled by manual or mechanical means at low speed ( max 4 km/h ).

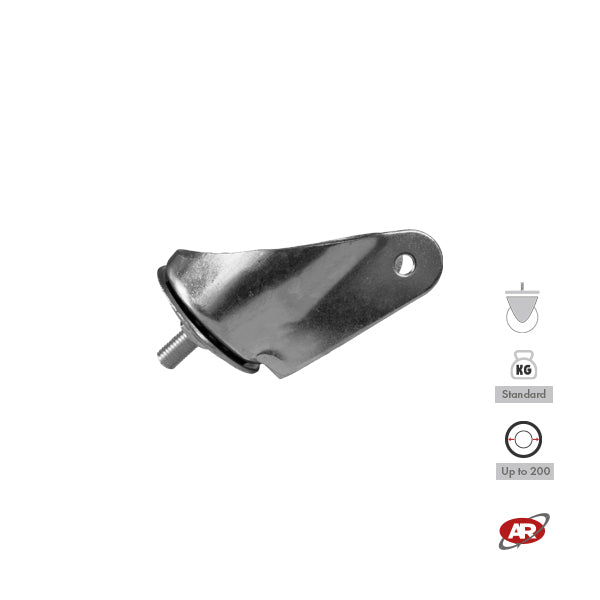

Rotating supports rotate around their vertical axis as the direction of travel changes . They can have a through hole, a smooth pin, or a threaded pin .

They are suitable for light loads in industrial applications. To ensure the correct choice, carefully check the plate dimensions, hole spacing, and fixing hole diameter.

Contact us to customize your rotating stand with the pin * that best suits your needs .

Rotating

(mm)	(mm)	(mm)	(mm)	(mm)	(mm)	(Kg)	[Cod]	[Cod]
80	106	37.5	12.2	M12 × 45 *	2.5	140	2H080-12I	2M080-12I
100	128	37.5	12.2	M12 × 45 *	2.5	150	2H100-12I	2M100-12I
125	153	39.5	12.2	M12 × 25 *	2.5	200	2H125-12I	2M125-12I
160	197	68	16.1	M16 × 45 *	3	300	2H160-16I	2M160-16I
200	235	68	16.1	M16 × 45 *	3	350	2H200-16I	2M200-16I

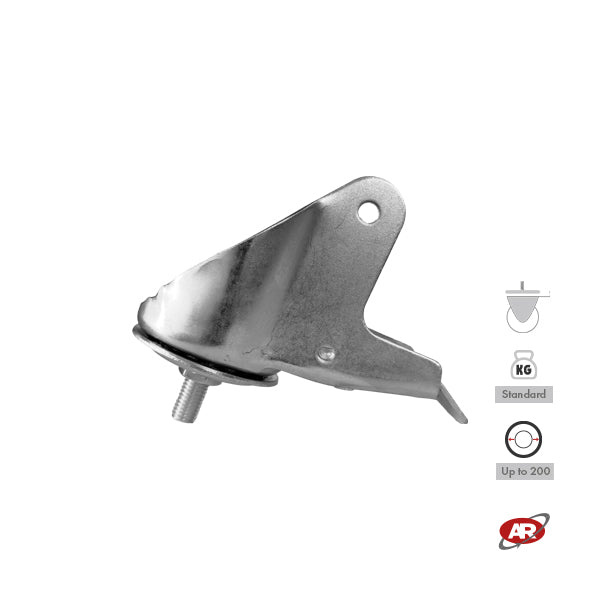

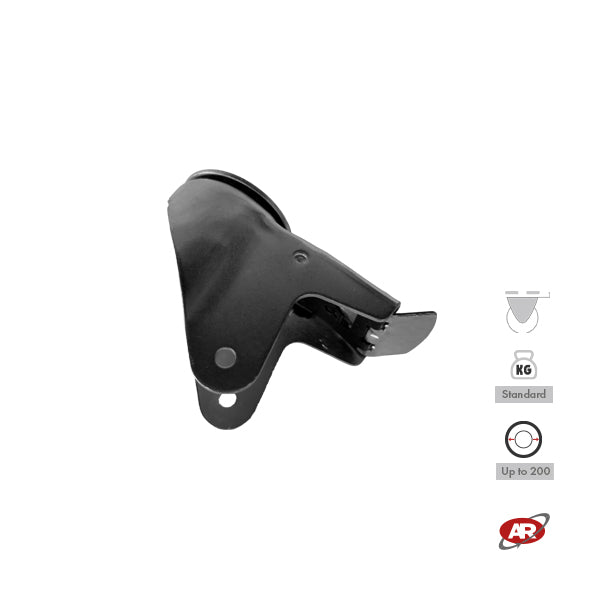

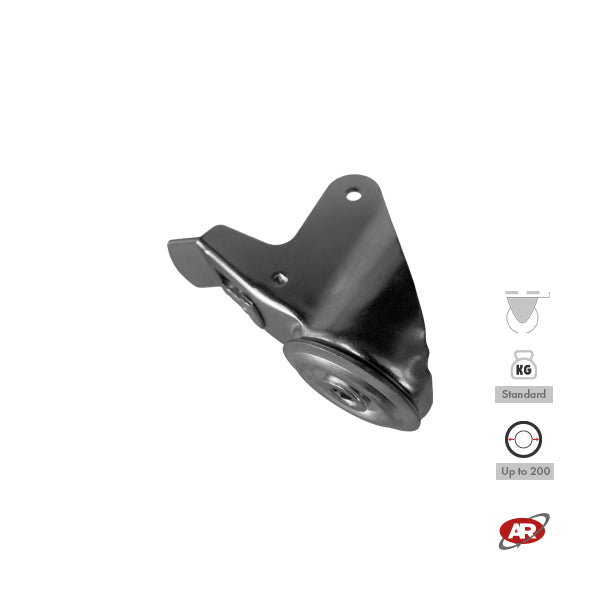

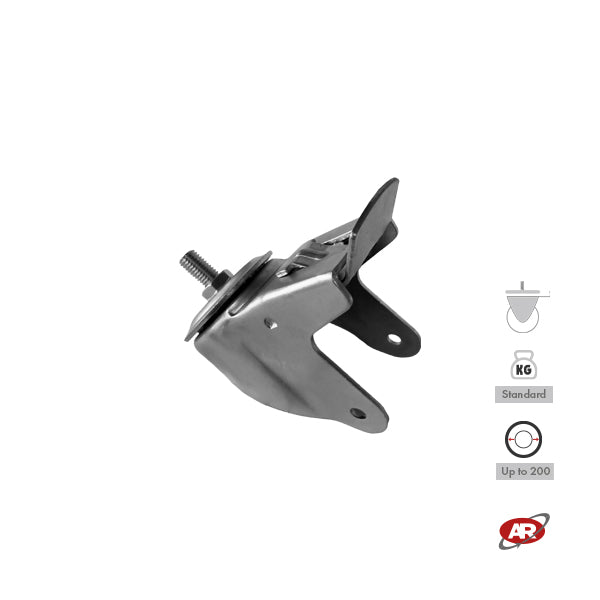

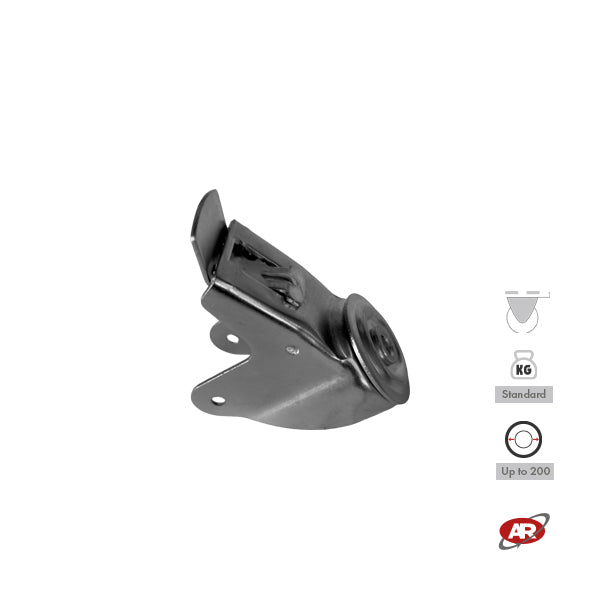

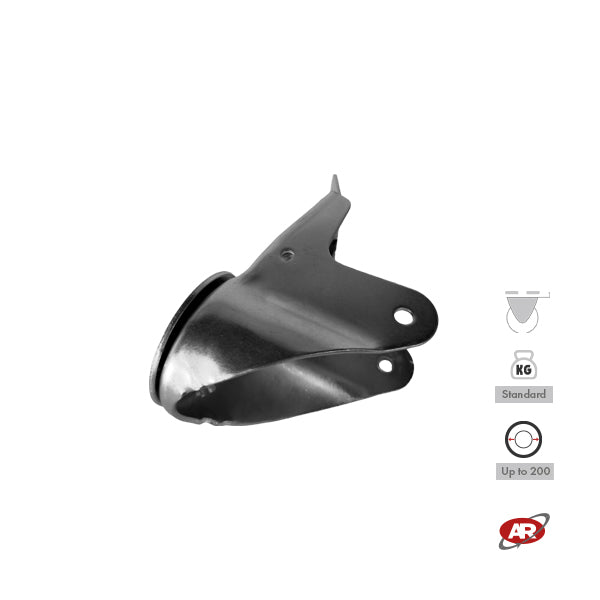

Rotating with brake

(mm)	(mm)	(mm)	(mm)	(mm)	(mm)	(Kg)	[Cod]	[Cod]
80	106	40	12.2	M12 × 45 *	2.5	140	3H080-12I	3M080-12I
100	128	40	12.2	M12 × 45 *	2.5	150	3H100-12I	3M100-12I
125	153	44	12.2	M12 × 45 *	2.5	210	3H125-12I	3M125-12I
160	197	68	16.1	M16 × 45 *	3	300	3H160-16I	3M160-16I
200	235	68	16.1	M16 × 45 *	3	350	3H200-16I	3M200-16I

SCROLLING TYPE


Bushing hole	Roller cage	Ball bearings

TYPE OF FLOOR


Cement	Ceramic	Carpet	Asphalt	Shavings	Grilled	Dirt road

SUPPORT TYPE


Fixed plate	Turntable	Turntable with brake	Rotating with central hole	Rotating with central hole and brake	Rotating with threaded shank	Rotating with threaded shank and brake	Rotating with smooth shank	Rotating with smooth shank and brake

WHEEL SIZES


Wheel diameter	Band width	Hub hole diameter	Hub length	Total height	Plate size	Hole spacing	Hole diameter	Through hole diameter	Pin diameter	Pin height

TERMS OF USE


Hardness	Room temperature	Flow rate

GUIDE TO CHOOSING WHEELS

A wheel is a circular object that can rotate around a central axis.

The wheel is composed of the following elements:
1. core
2. coating
3. hub
4. support

Wheels can be made of different materials both for the core and for the coating. They also differ in size, type of sliding and load capacity. For each individual need it is essential to identify the most suitable wheel, with any support.
In this choice it is necessary to take into account the type of use, the environment of use and the load it will have to support.

THE SUPPORT
The support is a connecting element between the wheel and the trolley/machinery/equipment etc. Manually operated wheels are usually not drive wheels but are only intended for towing or pushing operations with manual or mechanical means at reduced speed (max 4 km/h).

There are different types of support depending on the type of rotation and movement that allow:

Rotating supports
Rotating supports rotate around their vertical axis as the direction of travel changes. They can be with a plate, with a through hole, with a smooth pin or threaded pin. All these types of supports can have a built-in brake.

Fixed supports
It cannot rotate, it serves to keep the wheel along a guide line and is only available in the plate version.

On the same trolley/machinery/equipment it is possible to use wheels with different supports to maximize its performance.

TYPES OF SCROLLING

	Bushing bore: The bushing is the simplest, cheapest and most resistant type of sliding. Wheels with supports and through hole are normally used for trolleys moved at low speed and short distances. This type of sliding does not require particular maintenance except in some cases where the use of grease and oil is recommended. It is particularly resistant to corrosion and impacts.
	Needle Roller Cage: The needle roller cage bearing is a strong slide with a small assembly space that does not require any particular maintenance. It is the most used type of slide for light-medium loads. It consists of steel rollers caged in a steel or nylon structure. The rollers are lubricated at the time of assembly so they do not require any further maintenance.
	Ball Bearing: The ball bearing is ideal for medium-heavy loads where ease of sliding is of primary importance. It is composed of steel balls inserted in a cage that rotates between an outer ring and an inner ring also made of steel. The balls are lubricated at the time of assembly and sealed for better waterproofing.

TYPES OF SUPPORTS

For wheels with fixed and rotating supports, it is necessary to securely fasten the wheel to the trolley/equipment/machinery.

The fixing elements present in our wheels are the following:

Plate fixing

to screw, it is recommended for all machinery or flat surfaces. They are used for both light loads and high capacities usually for industrial applications.
Particular attention must be paid to the dimensions of the plate, the fixing hole spacing as well as the diameter of the fixing holes.

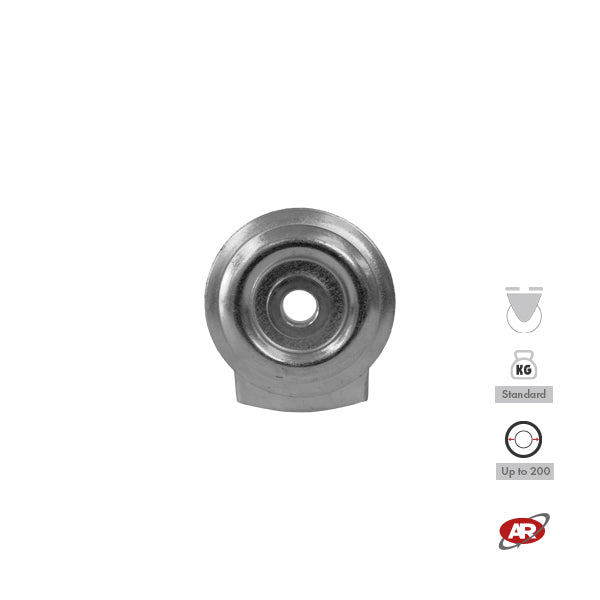

Fixing with central hole

This type of fixing has a central hole to screw onto the trolley.
Particular attention must be paid to the diameter of the plate and the diameter of the central hole.

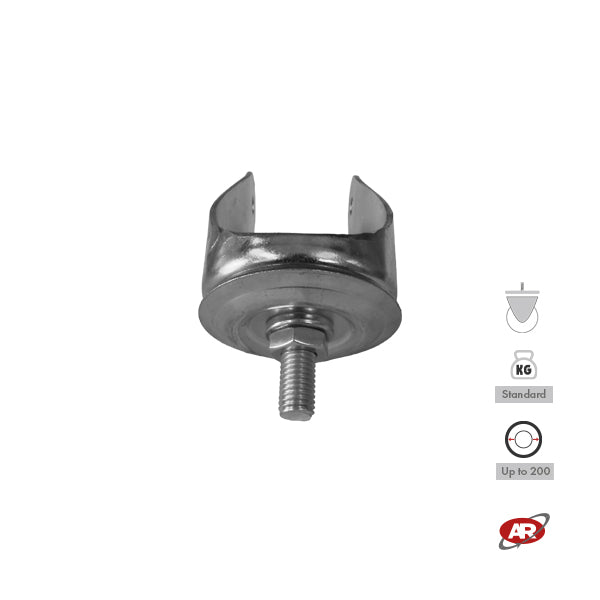

Fixing with threaded shank

The shank is screwed directly into the carriage and secured with a nut. Pay attention to the diameter of the threaded shank and the length of the shank.

Fixing with smooth shank

the shank is fixed directly into a tube or hole. It is used in the case of light-duty wheels.
There is also a version with a clip-on shank: the shank is inserted into a special tube and secured with a spring ring.
Wheels with this type of fixing are quick to mount and are usually used for furniture wheels.
When choosing a shank fastening, the shank diameter and length must be considered.
