Stainless steel plate supports | FIXED | SWIVEL | SWIVEL with BRAKE | Industrial applications | Load capacity up to 350 kg | For wheels up to Ø 200

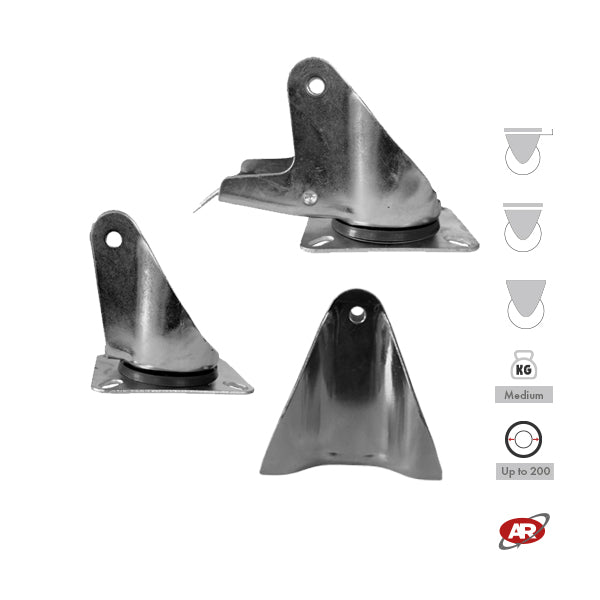

AISI 304 stainless steel plate castors for medium loads, available in fixed (F), swivel (G), and swivel with brake (B) versions. For wheels Ø 80–200 mm, load capacity up to 350 kg. Ideal for manually operated trolleys in dry or humid environments; excellent resistance to corrosion, chemicals, and abrasion. Plate center distances 80x60 and 105x80 mm; recommended use −5/+50 °C.

Tags:

Acciaio inox aisi 304, AISI 304, AISI 304 caster, AISI 304 caster brackets, AISI 304 Rolle, AISI 304 Rollenhalter, ambienti umidi, anti-corrosione, aziende di lavorazione della carne, bar, Bock, Bock Lenk Bremse, Bock/Lenk/Lenk mit Bremse, Bohrung Ø9/Ø11, bolt pattern 80x60 / 105x80, capacité 300 kg, carga 300 kg, carrelli di servizio, carro logístico, carros logísticos, carros manuales, catering, chapes inox AISI 304, chariot logistique, chariots de manutention, chariots logistiques, chimico farmaceutico, commercio del pesce, contenitori per lavanderia, corrosion-resistant, easy maintenance, Edelstahl Plattenrolle, Edelstahl Rollen, entornos húmedos, entraxes 80x60 / 105x80, entretien facile, farmacéutica, feuchte Bereiche, feuchte Umgebungen, fija, fija giratoria con freno, fija/giratoria/giratoria con freno, fixe, fixe pivotante avec frein, fixe/pivotante/pivotante frein, fixed, fixed swivel braked, fixed/swivel/swivel with brake, food & chemical industry, food grade caster, food industry, giratoria, giratoria con freno, grado alimentario, Handwagen, higiene, holes Ø9/Ø11, hotel, hygiene, industria alimentare, industria alimentaria, industria alimentaria/química, industria farmaceutica, industrial trolleys, industrial wheels Ø80–160 mm, industrie agro/chimie, industrie alimentaire, Industrieräder Ø80–160 mm, Industriewagen, korrosionsbeständig, lavable, Lebensmittel/chemische Industrie, lebensmittelecht, Lebensmittelindustrie, Lenk, Lenk mit Bremse, load 300 kg, load up to 300 kg, Lochbild 80x60 / 105x80, logistica, logistics cart, logistics carts, Logistikwagen, macellerie, macelli, mantenimiento sencillo, manual handling trolleys, manutención, manutention, milieux humides, negozi di frutta e verdura, Nuovi arrivi, Nuovo arrivo, orificios Ø9/Ø11, panetterie, patrón 80x60 / 105x80, pharma, pivotante, pivotante avec frein, placa 80x60/105x80, placas 105x90 / 140x115, plate mount 80x60/105x80, plates 105x90 / 140x115, platine 80x60/105x80, platines 105x90 / 140x115, Platten 105x90 / 140x115, Plattenbefestigung 80x60/105x80, qualité alimentaire, resistente a la corrosión, ristoranti, roues industrielles Ø80–160 mm, roues Ø80–160 mm, roulette AISI 304, roulette à platine inox, roulettes inox, rueda AISI 304, rueda con placa de acero inoxidable, rueda con placa inoxidable, ruedas industriales Ø80–160 mm, ruedas inox, ruedas Ø80–160 mm, ruote fisse girevoli freno, ruote inox, ruote per carrelli inox, Räder Ø80–160 mm, résistance à la corrosion, résistante à la corrosion, sanificabile, soportes AISI 304, stabilimenti di lavorazione del pesce, stainless steel caster wheels, stainless steel plate caster, supermercati., Supporti in acciaio Inox, Supporti per ruote industriali, supporti ruota inox AISI 304, swivel, swivel with brake, temp −5/+50 °C, Tragfähigkeit 300 kg, Tragkraft 300 kg, trous Ø9/Ø11, wartungsfreundlich, waschbar, wash-down safe, wet environments, wheels Ø80–160 mm

Acciaio inox aisi 304, AISI 304, AISI 304 caster, AISI 304 caster brackets, AISI 304 Rolle, AISI 304 Rollenhalter, ambienti umidi, anti-corrosione, aziende di lavorazione della carne, bar

By

AR.Trade s.r.l.

SKU:

F080I

Reference wheel: Ø 80 mm

Ø 80 mm

Ø 100 mm

Ø 125 mm

Ø 160 mm

Ø 200 mm

Choose the support: Fixed castor

Fixed castor Fixed castor

Swivel castor Swivel castor

Swivel castor with total brake Swivel castor with total brake

Quantity

Industrial components

people are seeing this right now

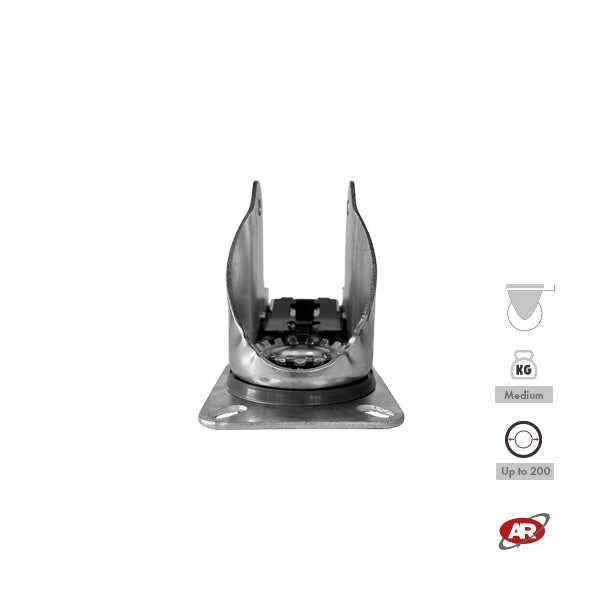

Medium-duty castors with fixed (F), swivel (G), and swivel with brake (B) plate in stainless steel ( AISI 304 ), industrial type . They offer good resistance to chemicals and abrasion. Range of use: −5/+50 °C. Ideal for both dry and humid environments. Use for manually operated trolleys, mobile equipment, and other applications requiring safe and reliable mobility.

The support connects the wheel to the trolley, machinery or equipment . In manual handling, the wheels are not drive wheels: they are designed to be pushed or pulled by manual or mechanical means at low speed ( max 4 km/h ).

Fixing is via a screw-on plate , recommended for machinery and flat surfaces . They are suitable for light loads in industrial applications. To ensure the correct choice, carefully check the plate dimensions, hole spacing, and diameter of the fixing holes.

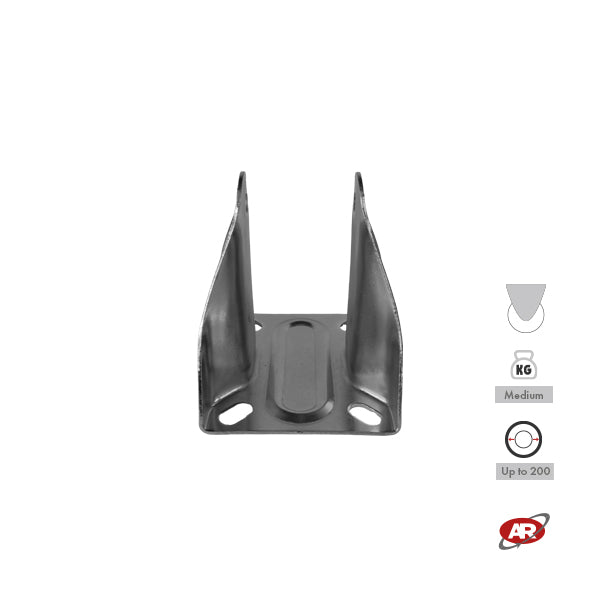

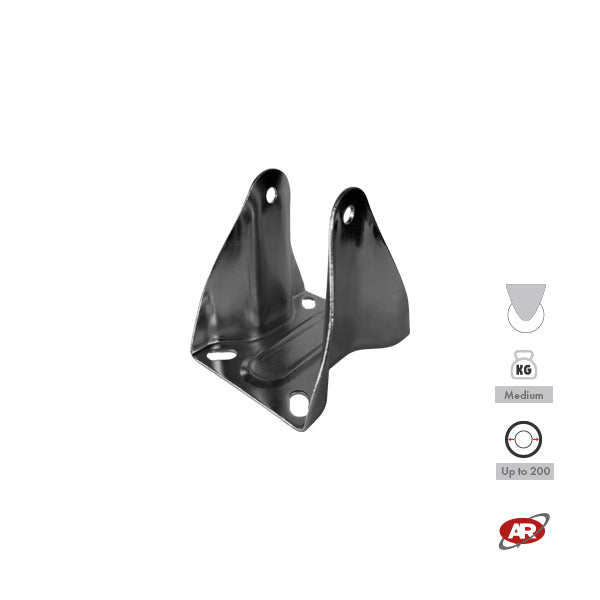

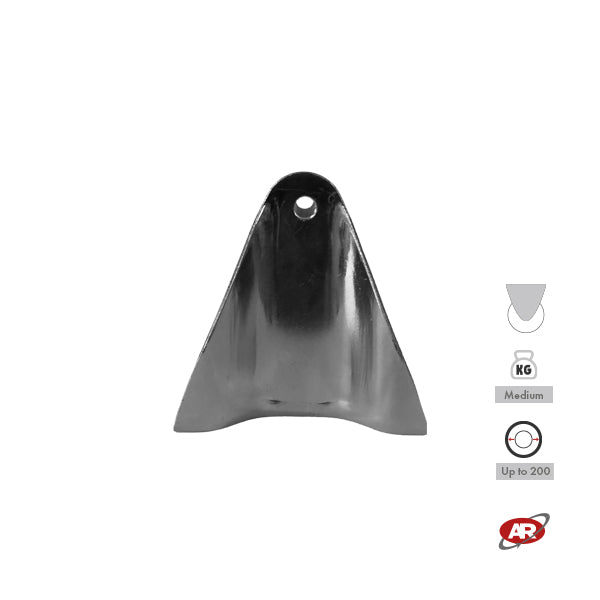

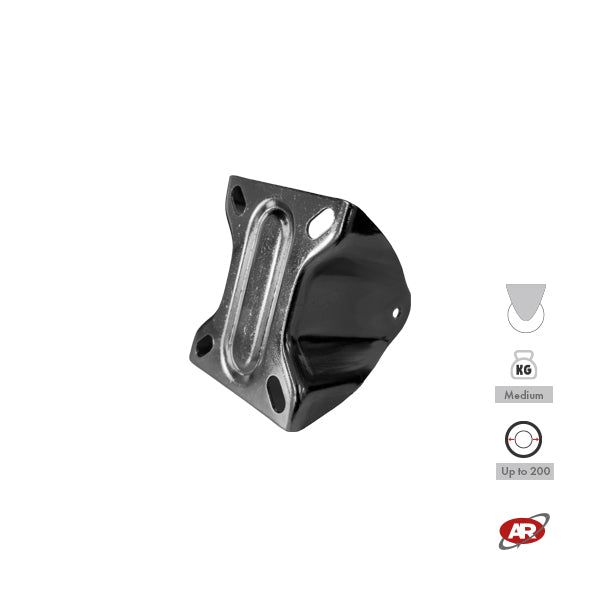

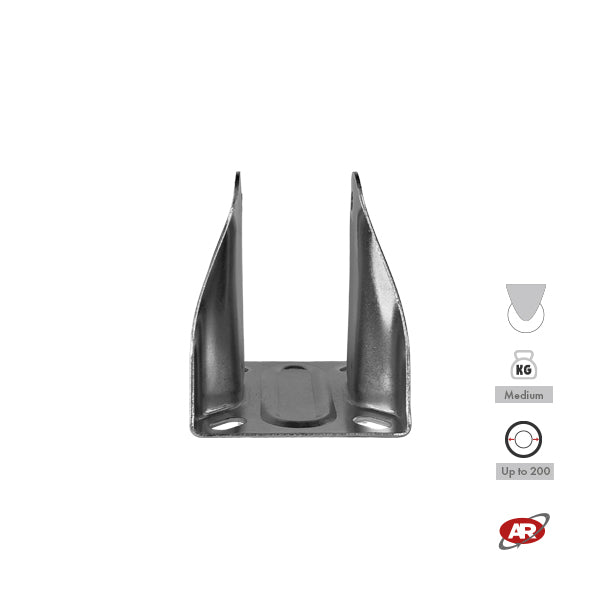

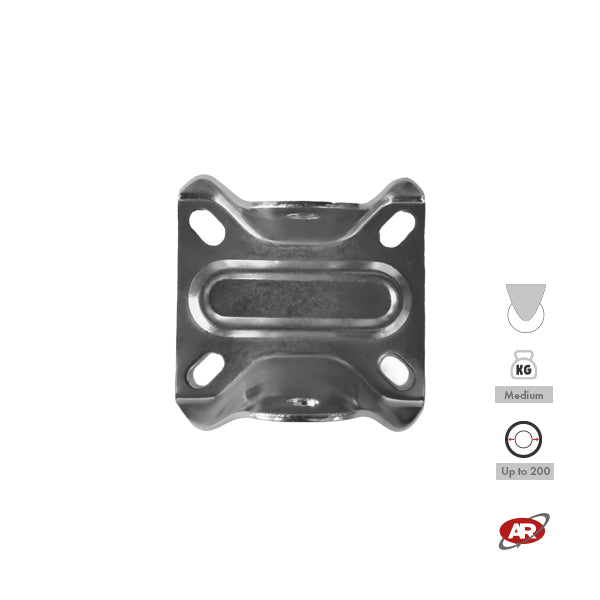

FIXED PLATE

(mm)	(mm)	(mm)	(mm)	(mm)	(mm)	(mm)	(Kg)	[Cod]
80	106	/	80x60	105x90	2	9	140	F080I
100	128	/	80x60	105x90	2	9	150	F100I
125	153	/	80x60	105x90	2	9	210	F125I
160	197	/	105x80	140x115	3	11	300	F160I
200	235	/	105x80	140x115	3	11	350	F200I

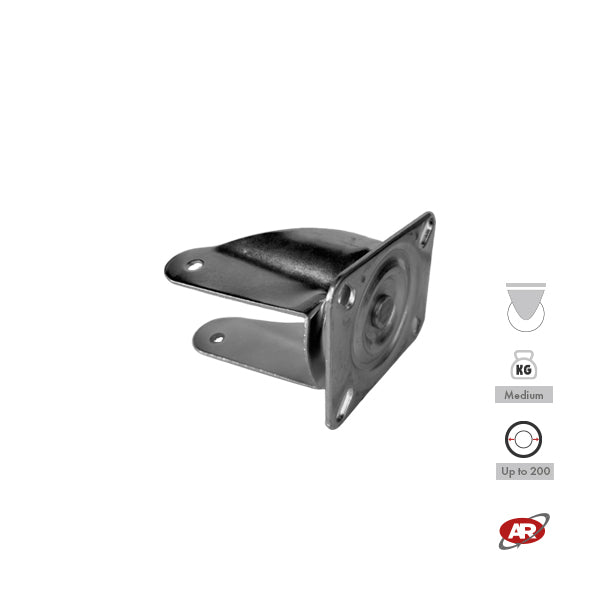

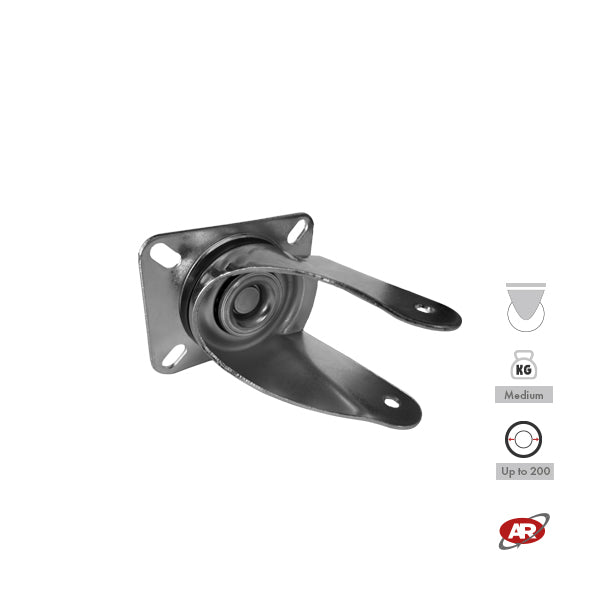

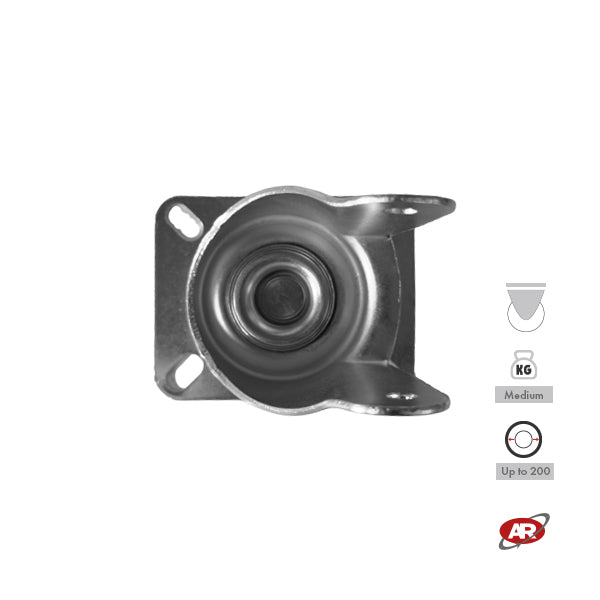

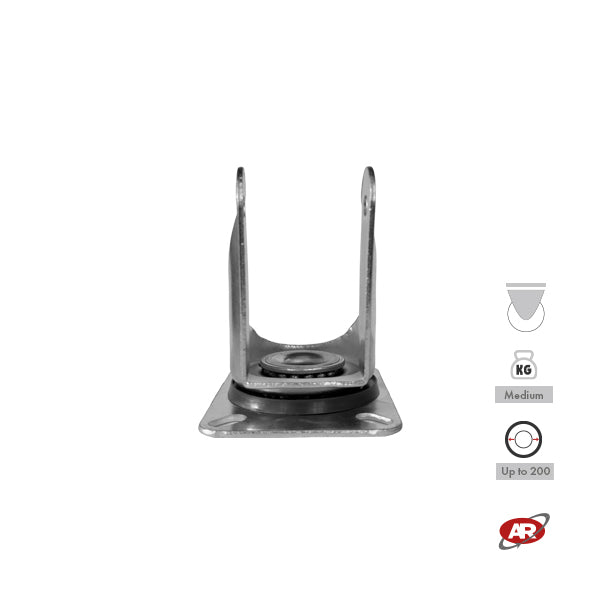

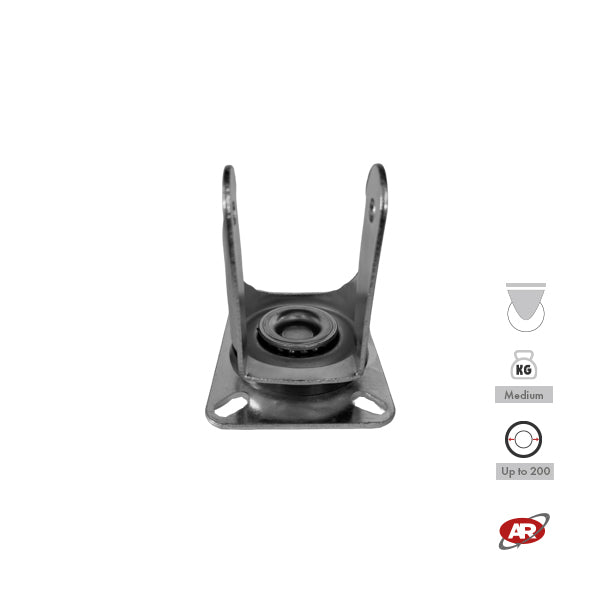

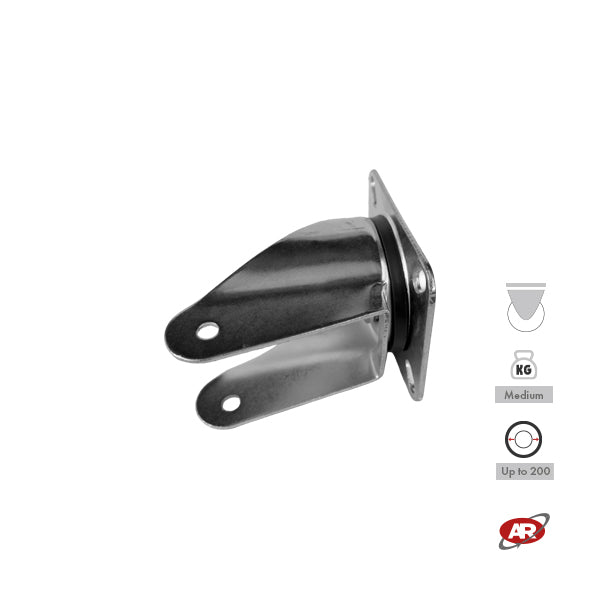

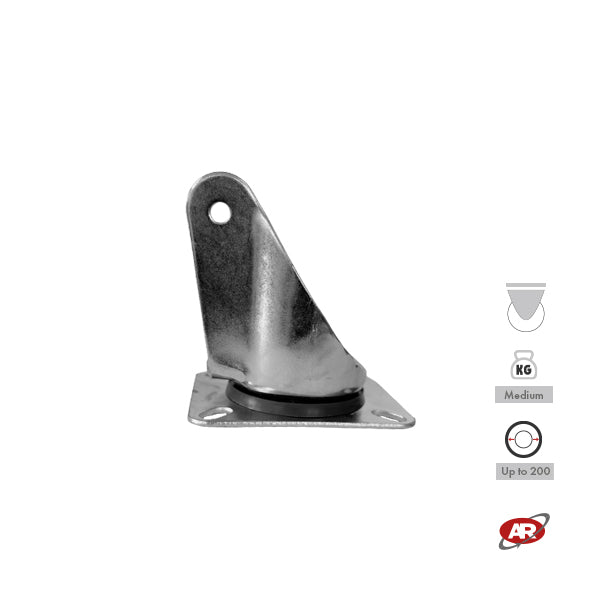

SWIVEL CASTOR

(mm)	(mm)	(mm)	(mm)	(mm)	(mm)	(mm)	(Kg)	[Cod]
80	106	37.5	80x60	105x90	2.5	9	140	G080I
100	128	37.5	80x60	105x90	2.5	9	150	G100I
125	153	39.5	80x60	105x90	2.5	9	210	G125I
160	197	68	105x80	135x105	3	11	300	G160I
200	235	68	105x80	135×105	3	11	300	G200I

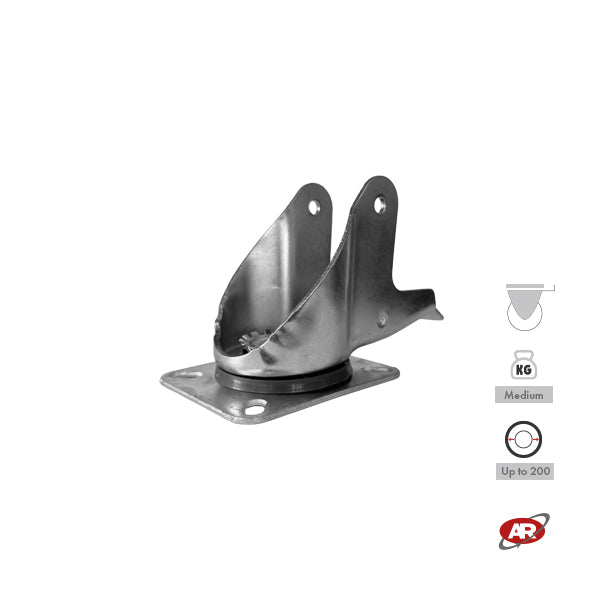

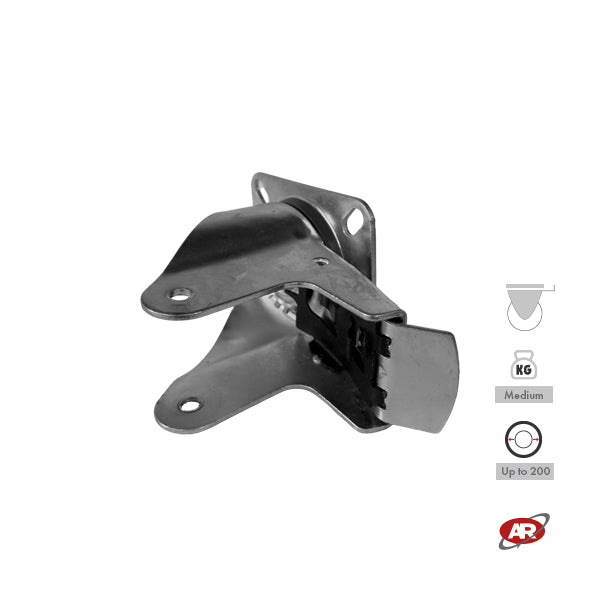

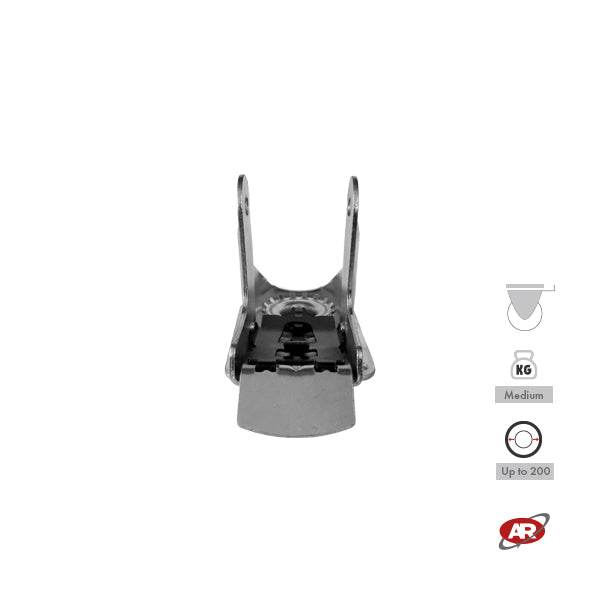

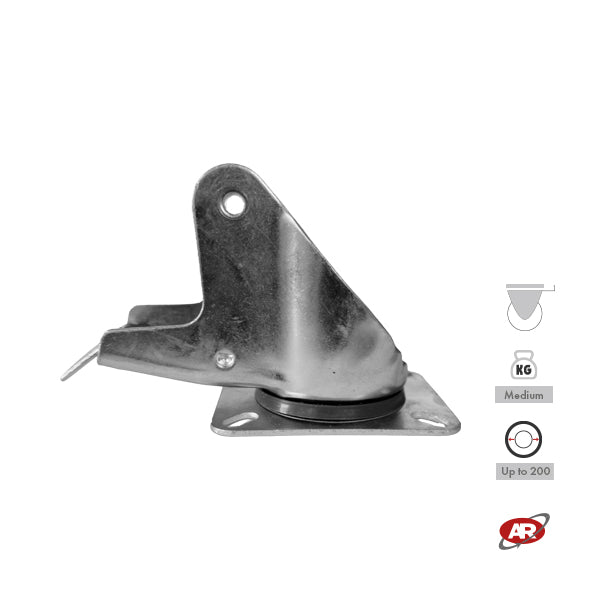

SWIVEL CASTOR WITH TOTAL BRAKE

(mm)	(mm)	(mm)	(mm)	(mm)	(mm)	(mm)	(Kg)	[Cod]
80	106	40	80x60	105x82.5	2.5	9	140	SB080I
100	128	40	80x60	105x82.5	2.5	9	150	SB100I
125	153	44	80x60	105x82.5	2.5	9	210	SB125I
160	197	68	105x80	135x105	3	11	300	SB160I
160	197	68	105x80	135x105	3	11	300	SB200I

SCROLLING TYPE


Bushing hole	Roller cage	Ball bearings

TYPE OF FLOOR


Cement	Ceramic	Carpet	Asphalt	Shavings	Grilled	Dirt road

SUPPORT TYPE


Fixed plate	Turntable	Turntable with brake	Rotating with central hole	Rotating with central hole and brake	Rotating with threaded shank	Rotating with threaded shank and brake	Rotating with smooth shank	Rotating with smooth shank and brake

WHEEL SIZES


Wheel diameter	Band width	Hub hole diameter	Hub length	Total height	Plate size	Hole spacing	Hole diameter	Through hole diameter	Pin diameter	Pin height

TERMS OF USE


Hardness	Room temperature	Flow rate

GUIDE TO CHOOSING WHEELS

A wheel is a circular object that can rotate around a central axis.

The wheel is composed of the following elements:
1. core
2. coating
3. hub
4. support

Wheels can be made of different materials both for the core and for the coating. They also differ in size, type of sliding and load capacity. For each individual need it is essential to identify the most suitable wheel, with any support.
In this choice it is necessary to take into account the type of use, the environment of use and the load it will have to support.

THE SUPPORT
The support is a connecting element between the wheel and the trolley/machinery/equipment etc. Manually operated wheels are usually not drive wheels but are only intended for towing or pushing operations with manual or mechanical means at reduced speed (max 4 km/h).

There are different types of support depending on the type of rotation and movement that allow:

Rotating supports
Rotating supports rotate around their vertical axis as the direction of travel changes. They can be with a plate, with a through hole, with a smooth pin or threaded pin. All these types of supports can have a built-in brake.

Fixed supports
It cannot rotate, it serves to keep the wheel along a guide line and is only available in the plate version.

On the same trolley/machinery/equipment it is possible to use wheels with different supports to maximize its performance.

TYPES OF SCROLLING

	Bushing bore: The bushing is the simplest, cheapest and most resistant type of sliding. Wheels with supports and through hole are normally used for trolleys moved at low speed and short distances. This type of sliding does not require particular maintenance except in some cases where the use of grease and oil is recommended. It is particularly resistant to corrosion and impacts.
	Needle Roller Cage: The needle roller cage bearing is a strong slide with a small assembly space that does not require any particular maintenance. It is the most used type of slide for light-medium loads. It consists of steel rollers caged in a steel or nylon structure. The rollers are lubricated at the time of assembly so they do not require any further maintenance.
	Ball Bearing: The ball bearing is ideal for medium-heavy loads where ease of sliding is of primary importance. It is composed of steel balls inserted in a cage that rotates between an outer ring and an inner ring also made of steel. The balls are lubricated at the time of assembly and sealed for better waterproofing.

TYPES OF SUPPORTS

For wheels with fixed and rotating supports, it is necessary to securely fasten the wheel to the trolley/equipment/machinery.

The fixing elements present in our wheels are the following:

Plate fixing

to screw, it is recommended for all machinery or flat surfaces. They are used for both light loads and high capacities usually for industrial applications.
Particular attention must be paid to the dimensions of the plate, the fixing hole spacing as well as the diameter of the fixing holes.

Fixing with central hole

This type of fixing has a central hole to screw onto the trolley.
Particular attention must be paid to the diameter of the plate and the diameter of the central hole.

Fixing with threaded shank

The shank is screwed directly into the carriage and secured with a nut. Pay attention to the diameter of the threaded shank and the length of the shank.

Fixing with smooth shank

the shank is fixed directly into a tube or hole. It is used in the case of light-duty wheels.
There is also a version with a clip-on shank: the shank is inserted into a special tube and secured with a spring ring.
Wheels with this type of fixing are quick to mount and are usually used for furniture wheels.
When choosing a shank fastening, the shank diameter and length must be considered.

TYPES OF TREAD
