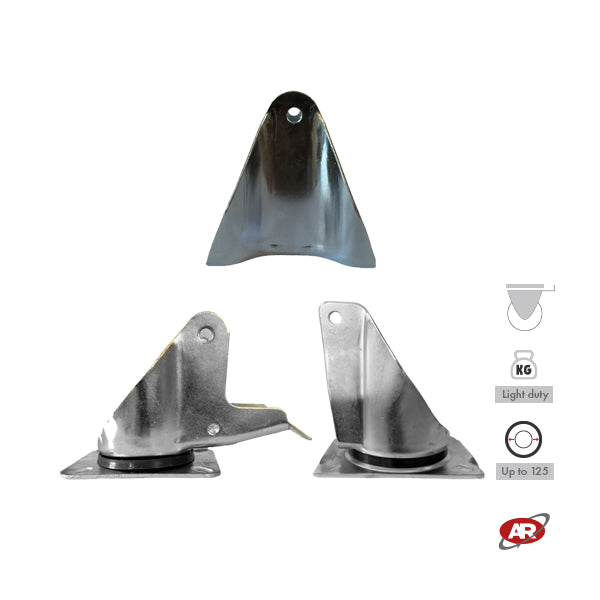

LIGHT duty castors with plate | FIXED | SWIVEL | SWIVEL with BRAKE | Galvanized steel | For industrial wheels up to Ø 125 | Load capacity up to 180 kg

Light-duty castors made of galvanized steel with fixed (F), swivel (G), and swivel with brake (B) plate, for industrial wheels Ø 80–125 mm and load capacity up to 180 kg. Ideal for manually operated trolleys: smooth rotation, stable locking, good resistance to chemicals and abrasion; use between −5 and +50 °C. Fixing on flat surfaces with 80x60 mm center distance, 105x90 / 105x82.5 mm plates and Ø9 mm holes.

Tags:

5, abrasion resistant, abriebfest, acero galvanizado, acier zingué, anti-abrasion, atelier/entrepôt, Bockrolle, Bohrung Ø9, bulk order, capacité 180 kg, carga hasta 180 kg, chemical resistant, chemikalienbeständig, corrosion resistant caster, entraxe 80x60, envío UE, EU shipping, EU Versand, expédition UE, fixed caster, fourniture OEM, furniture trolley caster, giro fluido, grossiste, Großhandel, Handtransport, hole Ø9, industrial wheels Ø80 Ø100 Ø125, Industrieräder Ø80 Ø100 Ø125, juego de ruedas carro, kit roues chariot, kleine Industrie Rollen, korrosionsbeständig, leichte Transportrollen, leichtes Schwenken, Leichtlast Plattenrolle, Leichtlast Rollen, Lenkrolle, Lenkrolle mit Bremse, light duty casters, light load caster wheels, light-duty plate caster, load up to 180 kg, maintenance free, manual handling, manutención manual, manutention manuelle, mayorista, montaje en placa 80x60, Möbelwagen Rolle, Nuovi arrivi, Nuovo arrivo, OEM Lieferung, OEM supply, orificio Ø9, petites roulettes industrielles, placas 105x90/105x82, plate mount 80x60, plate mounted caster, plates 105x90/105x82.5, platines 105x90/105x82, Platten 105x90/105x82, Plattenbefestigung 80x60, Plattenbefestigung Rolle, resistente a la abrasión y químicos, resistente a la corrosión, rotation fluide, roue pour chariot, roues industrielles Ø80 Ø100 Ø125, roulette fixe, roulette pivotante, roulette pivotante avec frein, roulette à platine légère, roulettes légère charge, rueda con placa ligera, rueda fija, rueda giratoria, rueda giratoria con freno, rueda para carro, ruedas industriales pequeñas, ruedas industriales Ø80 Ø100 Ø125, ruedas ligera carga, résistante aux agents chimiques, résistante à la corrosion, sans entretien, sin mantenimiento, small industrial caster, smooth rotation, Stahl verzinkt, suministro OEM, Supporti per ruote industriali, swivel caster, swivel caster with brake, taller/almacén, temp −5/+50 °C, Tragfähigkeit bis 180 kg, trolley wheel set, trou Ø9, Wagenrad Satz, wartungsfrei, Werkstattwagen Räder, workshop cart wheels, zinc-plated steel

5, abrasion resistant, abriebfest, acero galvanizado, acier zingué, anti-abrasion, atelier/entrepôt, Bockrolle, Bohrung Ø9, bulk order

By

AR.Trade s.r.l.

SKU:

F080-20

Reference wheel: Ø 80 mm

Ø 80 mm

Ø 100 mm

Ø 125 mm

Choose the support: Fixed castor

Fixed castor Fixed castor

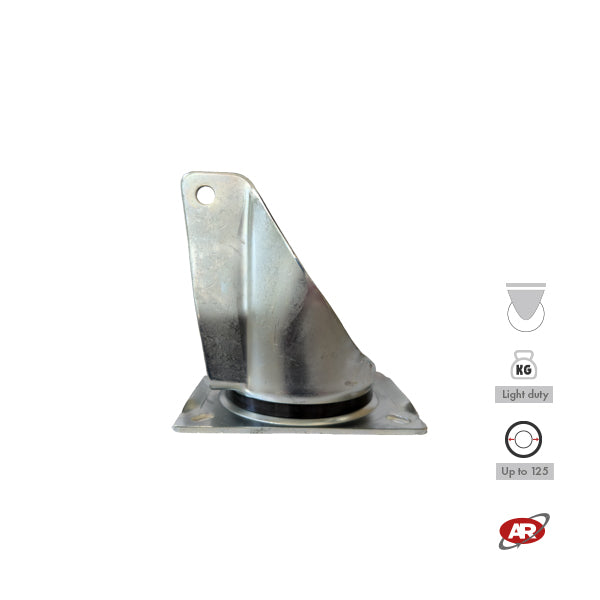

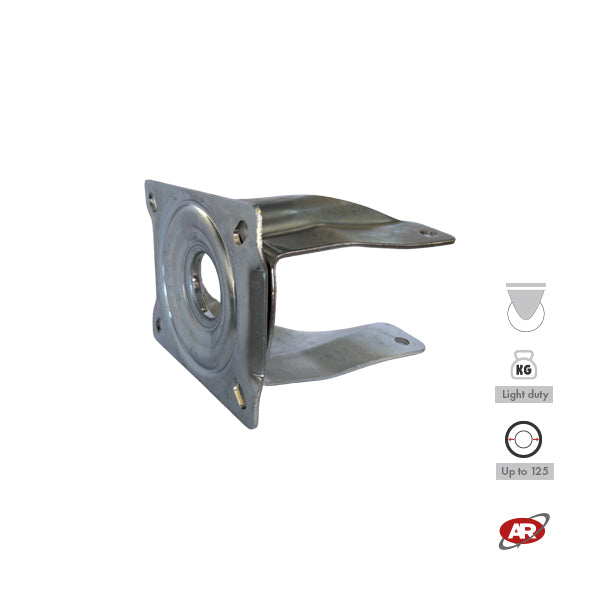

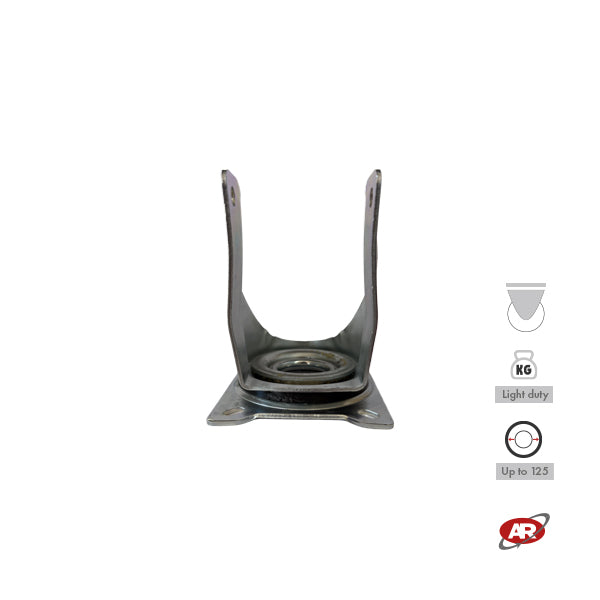

Swivel castor Swivel castor

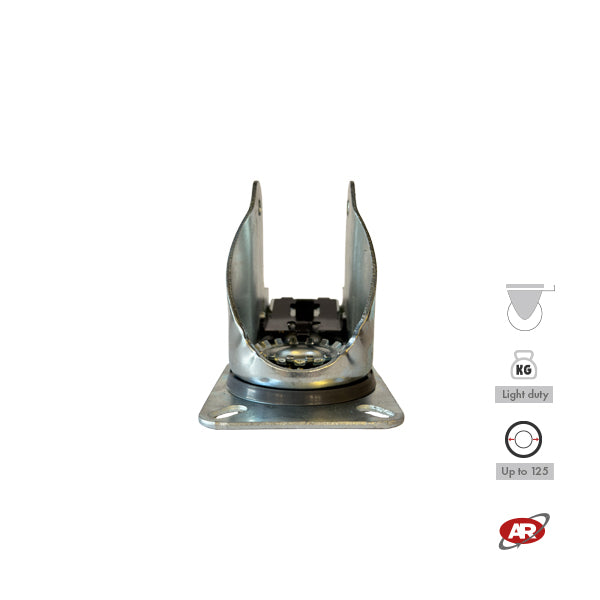

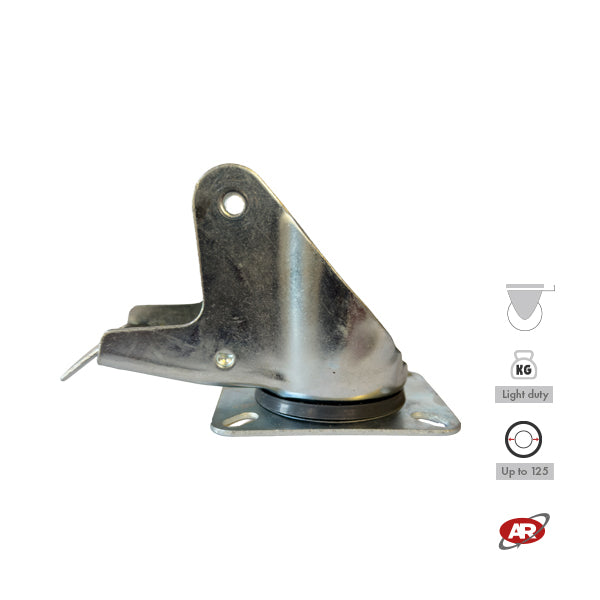

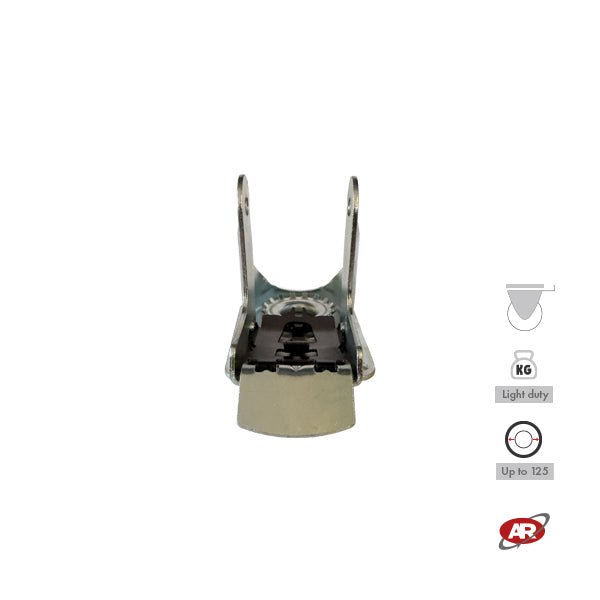

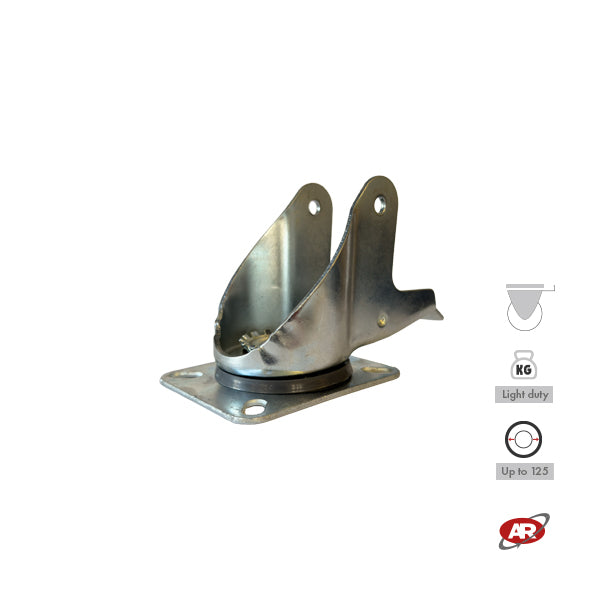

Swivel castor with total brake Swivel castor with total brake

Quantity

Industrial components

people are seeing this right now

LIGHT weight supports with fixed plate (F), swivel (G) and swivel with brake (B) in galvanized steel * , industrial type . They offer good resistance to chemicals and abrasion. Range of use: −5/+50 °C. Ideal for manually operated trolleys.

The support connects the wheel to the trolley, machinery or equipment . In manual handling, the wheels are not drive wheels: they are designed to be pushed or pulled by manual or mechanical means at low speed ( max 4 km/h ).

Fixing is via a screw-on plate , recommended for machinery and flat surfaces . They are suitable for light loads in industrial applications. To ensure the correct choice, carefully check the plate dimensions, hole spacing, and diameter of the fixing holes.

* Galvanized steel/sheet metal is compatible with water in the short/medium term, but is not ideal for continuous immersion or for food use without internal treatments.

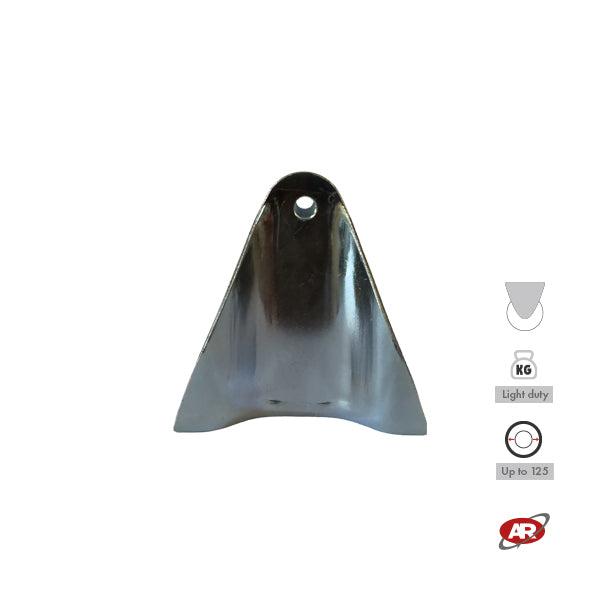

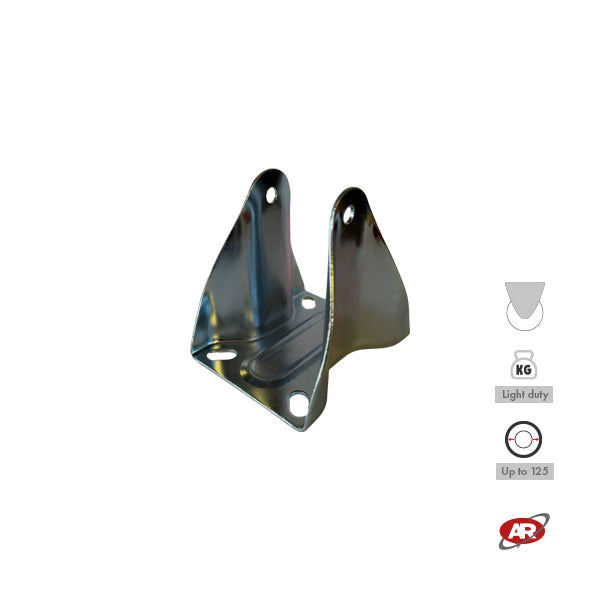

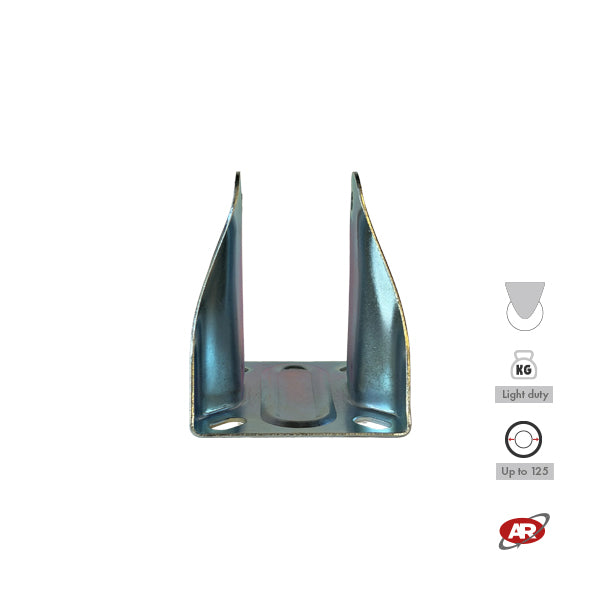

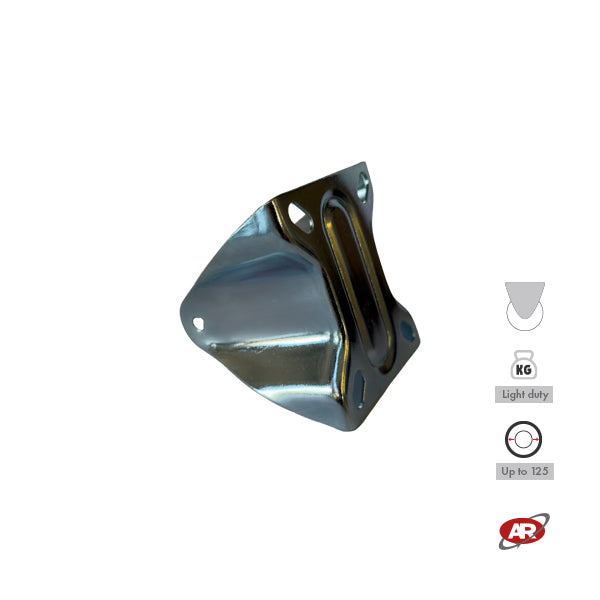

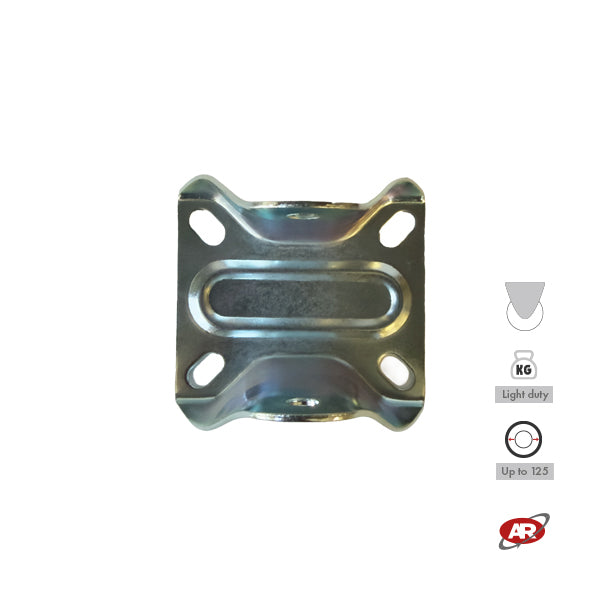

FIXED CASTOR

(mm)	(mm)	(mm)	(mm)	(mm)	(mm)	(Kg)	[Cod]
80	78	80x60	105x90	2	9	100	F080 -20HU
100	78	80x60	105x90	2	9	130	F100 -20HU
125	78	80x60	105x90	2	9	180	F125 -20HU

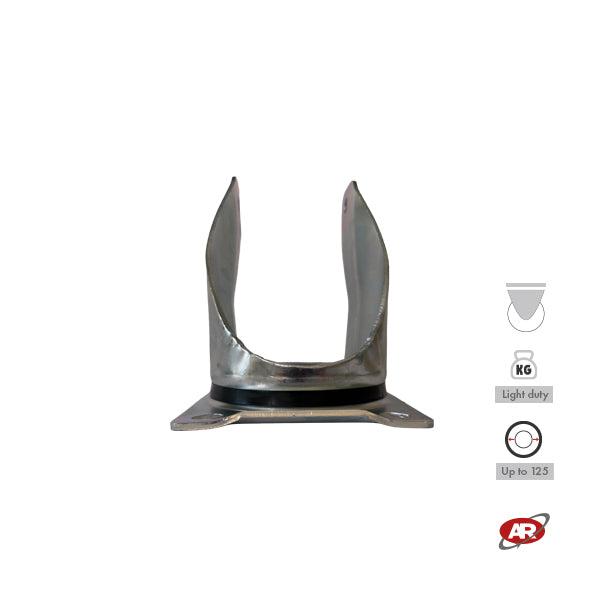

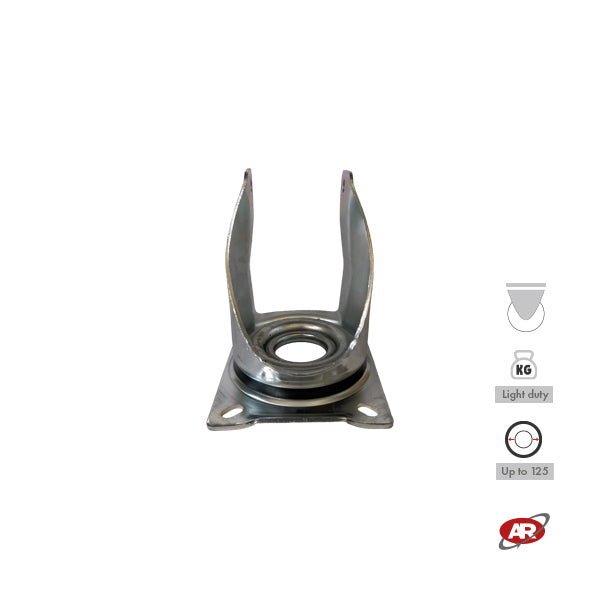

SWIVEL CASTOR

(mm)	(mm)	(mm)	(mm)	(mm)	(mm)	(mm)	(Kg)	[Cod]
80	78	37	80x60	105x82.5	2.2	9	100	G080 -22HU
100	78	37	80x60	105x82.5	2.2	9	130	G100 -22HU
125	78	37	80x60	105x82.5	2.2	9	180	G125 -22HU

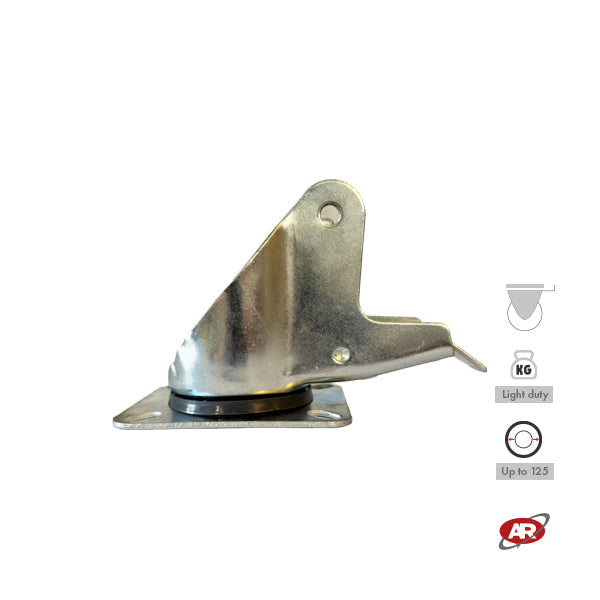

SWIVEL CASTOR WITH TOTAL BRAKE

(mm)	(mm)	(mm)	(mm)	(mm)	(mm)	(mm)	(Kg)	[Cod]
80	78	37	80x60	105x82.5	2.2	9	100	SB080 -22HU
100	78	37	80x60	105x82.5	2.2	9	130	SB100 -22HU
125	78	37	80x60	105x82.5	2.2	9	180	SB125 -22HU

SCROLLING TYPE


Bushing hole	Roller cage	Ball bearings

TYPE OF FLOOR


Cement	Ceramic	Carpet	Asphalt	Shavings	Grilled	Dirt road

SUPPORT TYPE


Fixed plate	Turntable	Turntable with brake	Rotating with central hole	Rotating with central hole and brake	Rotating with threaded shank	Rotating with threaded shank and brake	Rotating with smooth shank	Rotating with smooth shank and brake

WHEEL SIZES


Wheel diameter	Band width	Hub hole diameter	Hub length	Total height	Plate size	Hole spacing	Hole diameter	Through hole diameter	Pin diameter	Pin height

TERMS OF USE


Hardness	Room temperature	Flow rate

GUIDE TO CHOOSING WHEELS

A wheel is a circular object that can rotate around a central axis.

The wheel is composed of the following elements:
1. core
2. coating
3. hub
4. support

Wheels can be made of different materials both for the core and for the coating. They also differ in size, type of sliding and load capacity. For each individual need it is essential to identify the most suitable wheel, with any support.
In this choice it is necessary to take into account the type of use, the environment of use and the load it will have to support.

THE SUPPORT
The support is a connecting element between the wheel and the trolley/machinery/equipment etc. Manually operated wheels are usually not drive wheels but are only intended for towing or pushing operations with manual or mechanical means at reduced speed (max 4 km/h).

There are different types of support depending on the type of rotation and movement that allow:

Rotating supports
Rotating supports rotate around their vertical axis as the direction of travel changes. They can be with a plate, with a through hole, with a smooth pin or threaded pin. All these types of supports can have a built-in brake.

Fixed supports
It cannot rotate, it serves to keep the wheel along a guide line and is only available in the plate version.

On the same trolley/machinery/equipment it is possible to use wheels with different supports to maximize its performance.

TYPES OF SCROLLING

	Bushing bore: The bushing is the simplest, cheapest and most resistant type of sliding. Wheels with supports and through hole are normally used for trolleys moved at low speed and short distances. This type of sliding does not require particular maintenance except in some cases where the use of grease and oil is recommended. It is particularly resistant to corrosion and impacts.
	Needle Roller Cage: The needle roller cage bearing is a strong slide with a small assembly space that does not require any particular maintenance. It is the most used type of slide for light-medium loads. It consists of steel rollers caged in a steel or nylon structure. The rollers are lubricated at the time of assembly so they do not require any further maintenance.
	Ball Bearing: The ball bearing is ideal for medium-heavy loads where ease of sliding is of primary importance. It is composed of steel balls inserted in a cage that rotates between an outer ring and an inner ring also made of steel. The balls are lubricated at the time of assembly and sealed for better waterproofing.

TYPES OF SUPPORTS

For wheels with fixed and rotating supports, it is necessary to securely fasten the wheel to the trolley/equipment/machinery.

The fixing elements present in our wheels are the following:

Plate fixing

to screw, it is recommended for all machinery or flat surfaces. They are used for both light loads and high capacities usually for industrial applications.
Particular attention must be paid to the dimensions of the plate, the fixing hole spacing as well as the diameter of the fixing holes.

Fixing with central hole

This type of fixing has a central hole to screw onto the trolley.
Particular attention must be paid to the diameter of the plate and the diameter of the central hole.

Fixing with threaded shank

The shank is screwed directly into the carriage and secured with a nut. Pay attention to the diameter of the threaded shank and the length of the shank.

Fixing with smooth shank

the shank is fixed directly into a tube or hole. It is used in the case of light-duty wheels.
There is also a version with a clip-on shank: the shank is inserted into a special tube and secured with a spring ring.
Wheels with this type of fixing are quick to mount and are usually used for furniture wheels.
When choosing a shank fastening, the shank diameter and length must be considered.
