Heavy duty castors | Industrial-grade SWIVEL plate | 3.5/4 mm thick galvanized steel | For wheels up to Ø 250 mm | Swivel castor | Load capacity up to 800 kg

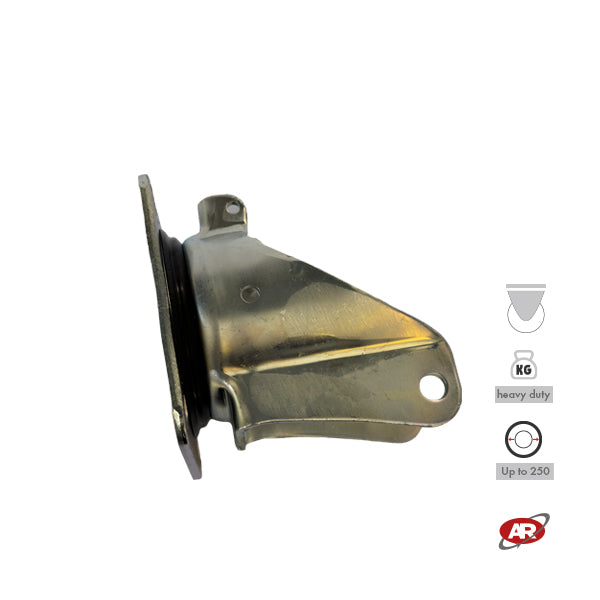

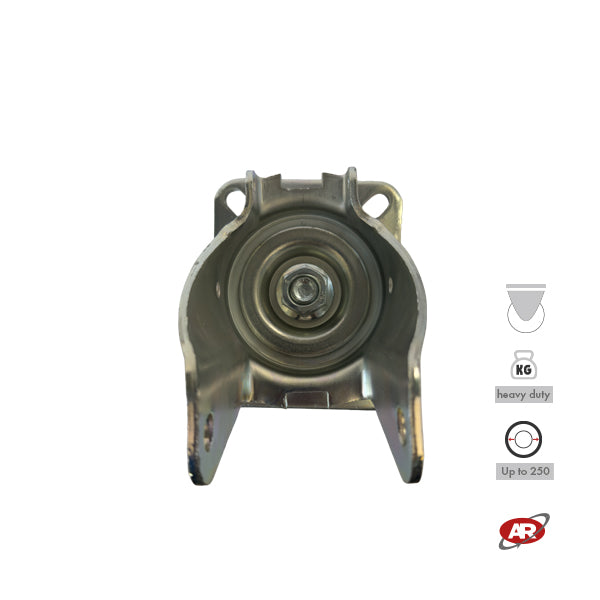

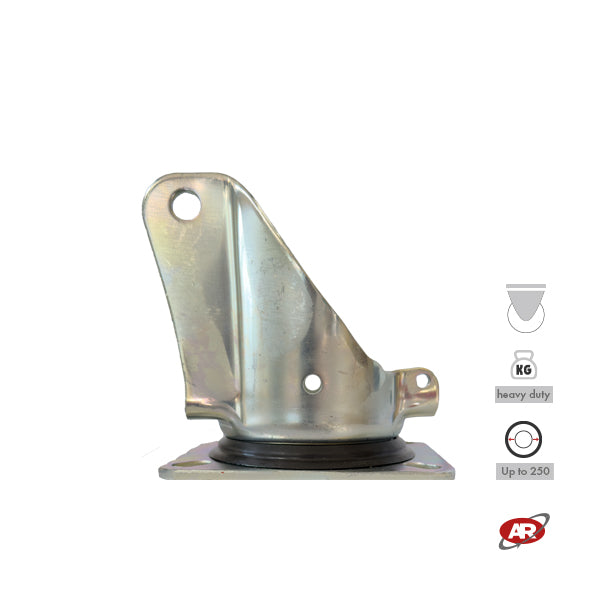

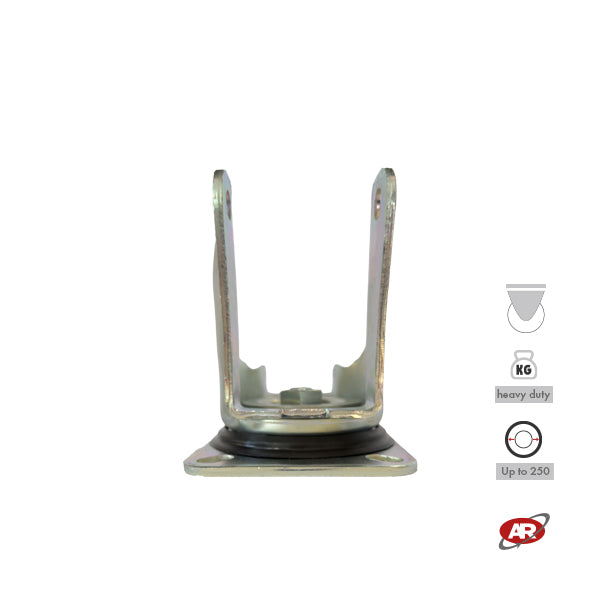

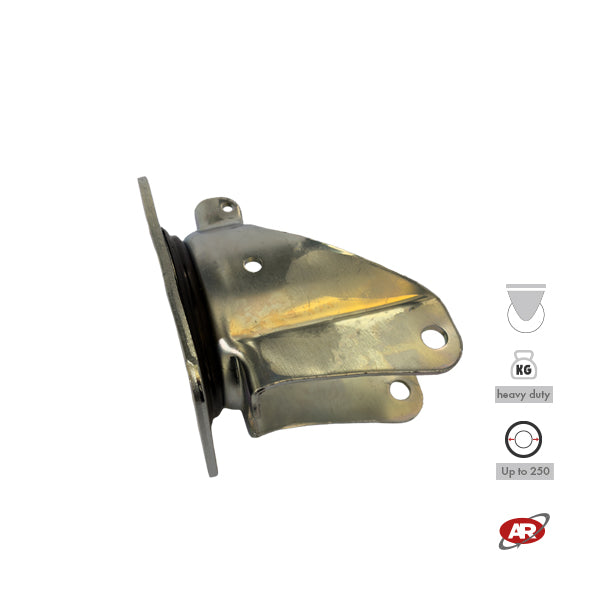

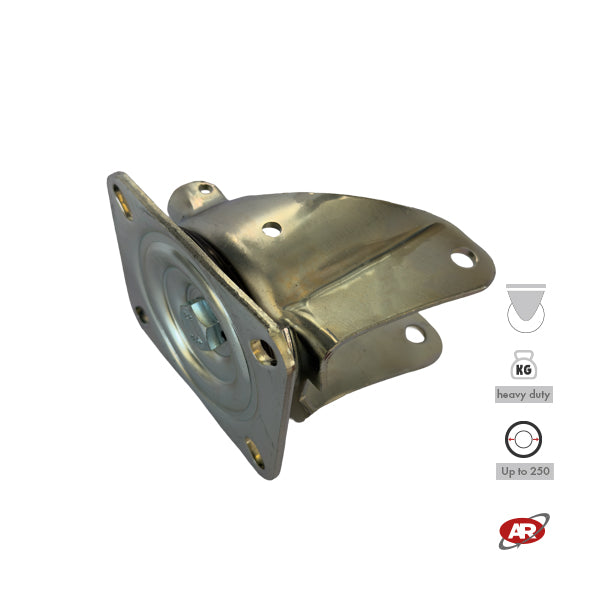

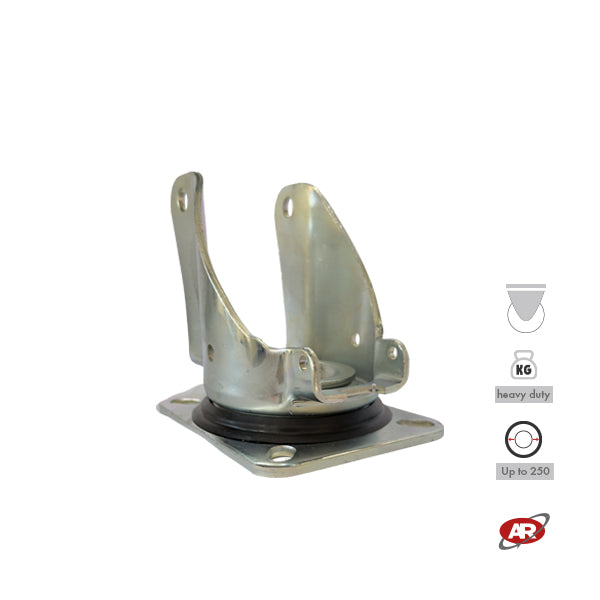

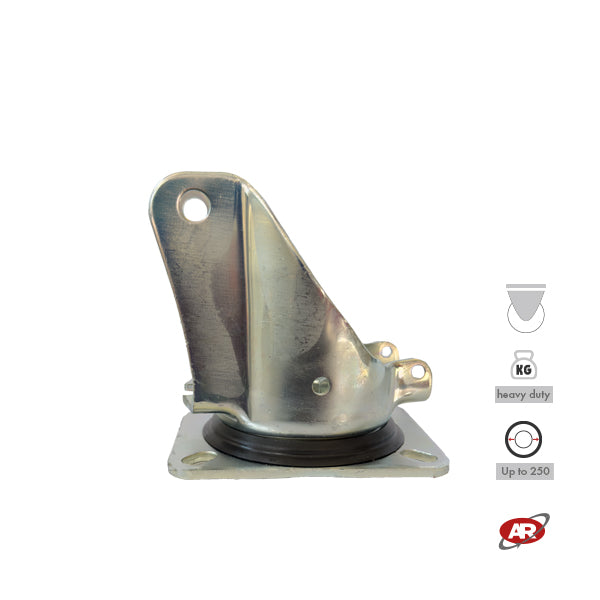

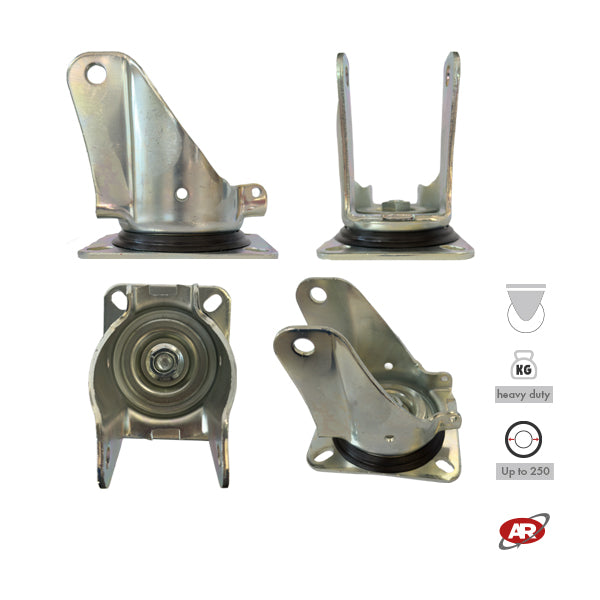

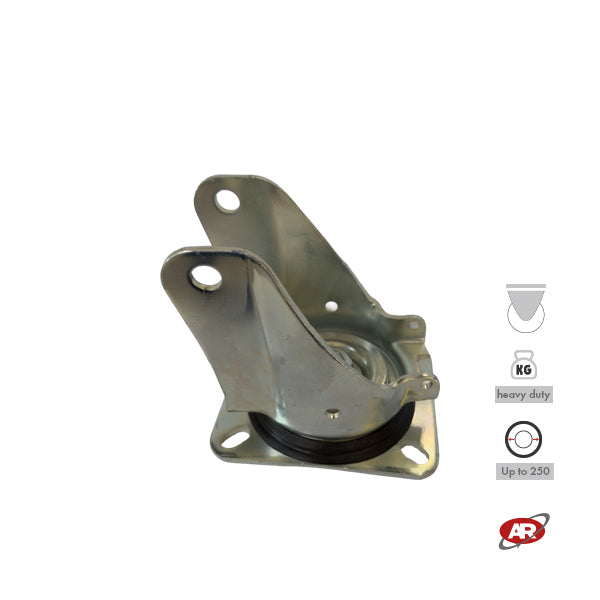

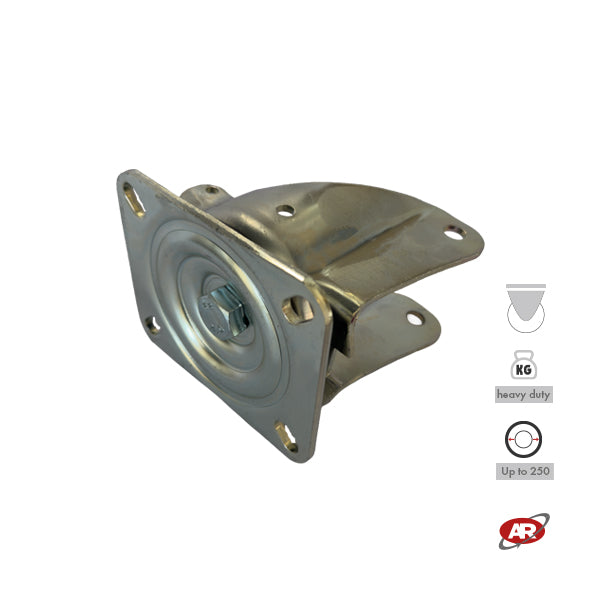

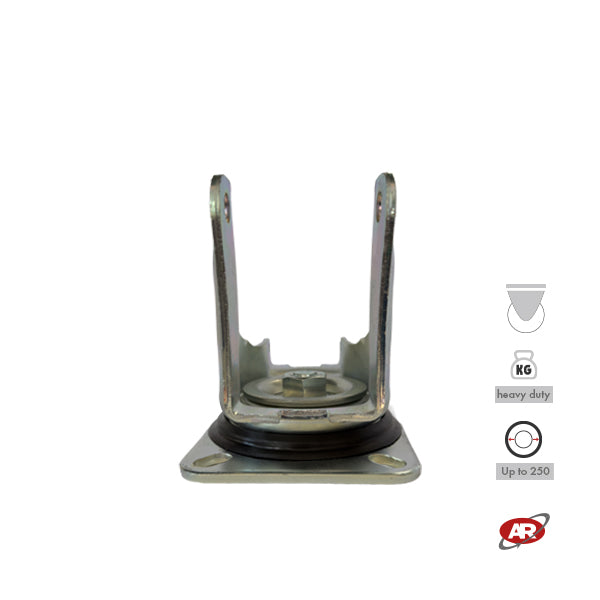

HEAVY-DUTY swivel plate castors made of galvanized steel, 3.5/4 mm thick, for wheels Ø 100–250 mm and load capacity up to 800 kg. Smooth rotation for tight maneuvers on manually operated trolleys; good resistance to chemicals and abrasion, use at −5/+50 °C. Bolt-on plate with 80x60 and 105x80 mm center distances; Ø 9/12 mm holes.

Tags:

5/4 mm, 800 kg load, 800 kg Traglast, abrasion-resistant, abriebfest, acero galvanizado 3, acier zingué 3, anti-abrasion, antiabrasión, ball-bearing swivel, Bohrung 9/12 mm, Bohrungen 9/12 mm, bolt holes 9/12 mm, bolt pattern 80×60 / 105×80 mm, capacité 800 kg, capacité jusqu’à 800 kg, carga 800 kg, carga hasta 800 kg, carros de almacén, carros industriales, chape à platine, chariots industriels, chariots logistiques, chemical-resistant, chemikalienbeständig, Drehkranz mit Platte, entraxes 80×60 / 105×80 mm, fijación a placa, fixation à platine, fixation à platine 80x60/105x80, Fördertechnik, giro con rodamientos, giro fluido, heavy-duty swivel caster, heavy-duty swivel plate caster, holes 9/12 mm, industrial trolley caster, industrial trolleys, Industrie-Transportwagen, Industriebedarf, KIT100G, KIT125G, KIT160G, KIT200G, KIT250G, Kugellenkung, leichtes Schwenken, load up to 800 kg, Lochbild 80×60 / 105×80 mm, Logistikwagen, manipulación de materiales, manutention industrielle, material handling, montaje en placa 80x60/105x80, Nuovi arrivi, Nuovo arrivo, orificios 9/12 mm, patrón 80×60 / 105×80 mm, pivot à billes, plate mount, plate mount 80x60/105x80, Plattenbefestigung, Plattenbefestigung 80x60/105x80, Rad Ø100–250 mm, resistente a químicos, rotation fluide, roue Ø100–250 mm, roues Ø100–250 mm, roulette pivotante forte charge, roulette pivotante forte charge à platine, rueda giratoria de alta carga, rueda giratoria de alta carga con placa, rueda Ø100–250 mm, ruedas Ø100–250 mm, Räder Ø100–250 mm, résistante aux agents chimiques, Schwerlast Lenkrolle, Schwerlast Lenkrolle mit Platte, smooth swivel, soporte con platina, Stahl verzinkt 3, Supporti per ruote industriali, temp −5/+50 °C, top plate swivel, Tragfähigkeit bis 800 kg, trous 9/12 mm, verzinktes Gehäuse 3, warehouse carts, wheel Ø100–250 mm, wheels Ø100–250 mm, yoke 3.5/4 mm, zinc-plated bracket, zinc-plated steel 3.5/4 mm

5/4 mm, 800 kg load, 800 kg Traglast, abrasion-resistant, abriebfest, acero galvanizado 3, acier zingué 3, anti-abrasion, antiabrasión, ball-bearing swivel

By

AR.Trade s.r.l.

SKU:

KIT100G

Heavy-duty supports | Plate | For industrial wheels

people are seeing this right now

HEAVY DUTY galvanized steel swivel plate supports * , industrial type . They offer good resistance to chemicals and abrasion. Range of use: −5/+50 °C. Ideal for manually operated trolleys.

The support connects the wheel to the trolley, machinery or equipment . In manual handling, the wheels are not drive wheels: they are designed to be pushed or pulled by manual or mechanical means at low speed ( max 4 km/h ).

Fixing is via a screw-on plate , recommended for machinery and flat surfaces . They are suitable for light loads in industrial applications. To ensure the correct choice, carefully check the plate dimensions, hole spacing, and diameter of the fixing holes.

* Galvanized steel/sheet metal is compatible with water in the short/medium term, but is not ideal for continuous immersion or for food use without internal treatments.

(mm)	(mm)	(mm)	(mm)	(mm)	(mm)	(Kg)	[Cod]
100	81	80×60	105×87	3.5	9	250	KIT100G
125	96	80×60	105×87	3.5	9	300	KIT125G
160	120	105×80	135x112	4	12	600	KIT160G
200	140	105×80	135x112	4	12	700	KIT200G
250	164	105×80	135x112	4	12	800	KIT250G

SCROLLING TYPE


Bushing hole	Roller cage	Ball bearings

TYPE OF FLOOR


Cement	Ceramic	Carpet	Asphalt	Shavings	Grilled	Dirt road

SUPPORT TYPE


Fixed plate	Turntable	Turntable with brake	Rotating with central hole	Rotating with central hole and brake	Rotating with threaded shank	Rotating with threaded shank and brake	Rotating with smooth shank	Rotating with smooth shank and brake

WHEEL SIZES


Wheel diameter	Band width	Hub hole diameter	Hub length	Total height	Plate size	Hole spacing	Hole diameter	Through hole diameter	Pin diameter	Pin height

TERMS OF USE


Hardness	Room temperature	Flow rate

GUIDE TO CHOOSING WHEELS

A wheel is a circular object that can rotate around a central axis.

The wheel is composed of the following elements:
1. core
2. coating
3. hub
4. support

Wheels can be made of different materials both for the core and for the coating. They also differ in size, type of sliding and load capacity. For each individual need it is essential to identify the most suitable wheel, with any support.
In this choice it is necessary to take into account the type of use, the environment of use and the load it will have to support.

THE SUPPORT
The support is a connecting element between the wheel and the trolley/machinery/equipment etc. Manually operated wheels are usually not drive wheels but are only intended for towing or pushing operations with manual or mechanical means at reduced speed (max 4 km/h).

There are different types of support depending on the type of rotation and movement that allow:

Rotating supports
Rotating supports rotate around their vertical axis as the direction of travel changes. They can be with a plate, with a through hole, with a smooth pin or threaded pin. All these types of supports can have a built-in brake.

Fixed supports
It cannot rotate, it serves to keep the wheel along a guide line and is only available in the plate version.

On the same trolley/machinery/equipment it is possible to use wheels with different supports to maximize its performance.

TYPES OF SCROLLING

	Bushing bore: The bushing is the simplest, cheapest and most resistant type of sliding. Wheels with supports and through hole are normally used for trolleys moved at low speed and short distances. This type of sliding does not require particular maintenance except in some cases where the use of grease and oil is recommended. It is particularly resistant to corrosion and impacts.
	Needle Roller Cage: The needle roller cage bearing is a strong slide with a small assembly space that does not require any particular maintenance. It is the most used type of slide for light-medium loads. It consists of steel rollers caged in a steel or nylon structure. The rollers are lubricated at the time of assembly so they do not require any further maintenance.
	Ball Bearing: The ball bearing is ideal for medium-heavy loads where ease of sliding is of primary importance. It is composed of steel balls inserted in a cage that rotates between an outer ring and an inner ring also made of steel. The balls are lubricated at the time of assembly and sealed for better waterproofing.

TYPES OF SUPPORTS

For wheels with fixed and rotating supports, it is necessary to securely fasten the wheel to the trolley/equipment/machinery.

The fixing elements present in our wheels are the following:

Plate fixing

to screw, it is recommended for all machinery or flat surfaces. They are used for both light loads and high capacities usually for industrial applications.
Particular attention must be paid to the dimensions of the plate, the fixing hole spacing as well as the diameter of the fixing holes.

Fixing with central hole

This type of fixing has a central hole to screw onto the trolley.
Particular attention must be paid to the diameter of the plate and the diameter of the central hole.

Fixing with threaded shank

The shank is screwed directly into the carriage and secured with a nut. Pay attention to the diameter of the threaded shank and the length of the shank.

Fixing with smooth shank

the shank is fixed directly into a tube or hole. It is used in the case of light-duty wheels.
There is also a version with a clip-on shank: the shank is inserted into a special tube and secured with a spring ring.
Wheels with this type of fixing are quick to mount and are usually used for furniture wheels.
When choosing a shank fastening, the shank diameter and length must be considered.

TYPES OF TREAD
